Connecting Rod and Piston Orientation
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

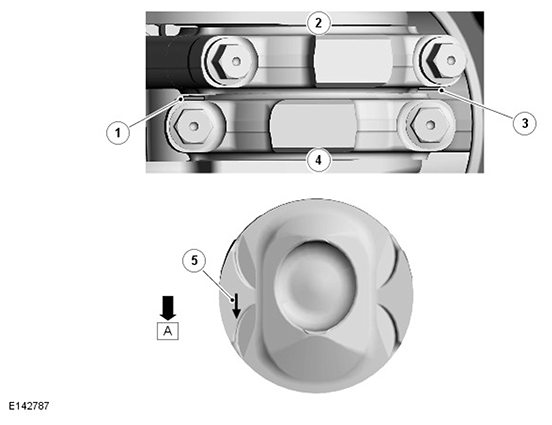

| ITEM | DESCRIPTION |
|---|---|
| A | Front of engine |
| 1 | Alignment mark |
| 2 | Bank 2 |
| 3 | Alignment mark |
| 4 | Bank 1 |
| 5 | Piston orientation arrow |
The orientation of the connecting rods and pistons on the crankshaft are given below:
- Bank 1 - The arrow on the piston crown must face the front of the engine and the cap and connecting rod alignment marks must face the rear of the engine.
- Bank 2 - The arrow on the piston crown must face the front of the engine and the cap and connecting rod alignment marks must face the front of the engine.
