Special Tool(S)

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
G11416436
 303-021
Engine support bracket
G11416437
 303-1435
Engine Lifting Brackets Rear
G11416438
 303-1436
Engine Lifting Bracket Front
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the engine removed for clarity.

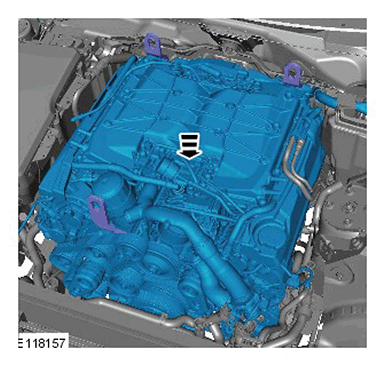

  1. NOTE: This step requires the aid of another technician.
    G11416439

    Install the engine assembly.

    Special Tool(s):  303-1435, 303-1436

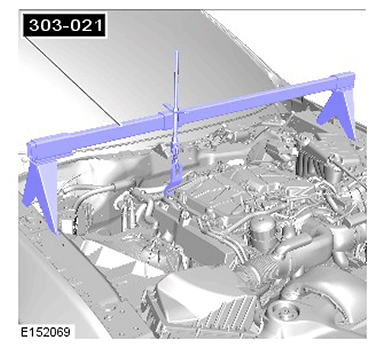

  2. G11416440

    Install the special tool.

    Special Tool(s):  303-021

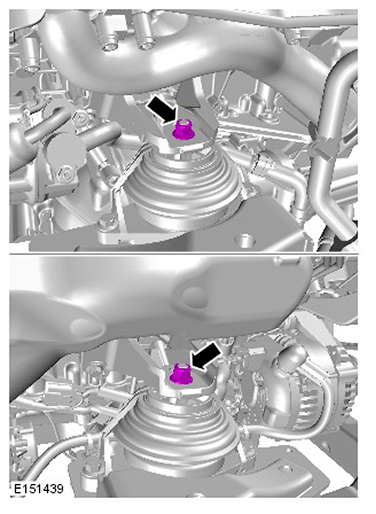

  3. G11416441

    Torque Specification: 45 Nm

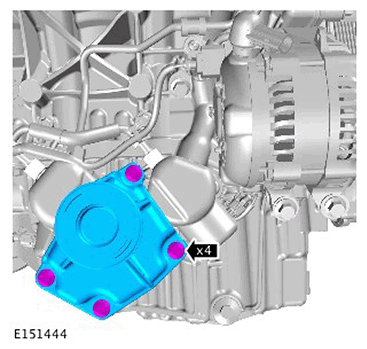

  4. CAUTION: A new O-ring seal is to be installed.
    G11416442

    Torque Specification: 25 Nm

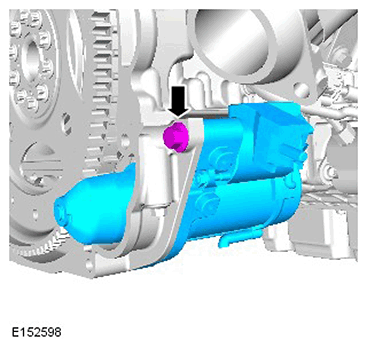

  5. G11416443

    Torque Specification: 48 Nm

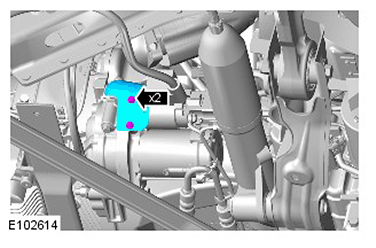

  6. G11416444

    Torque Specification: 6 Nm

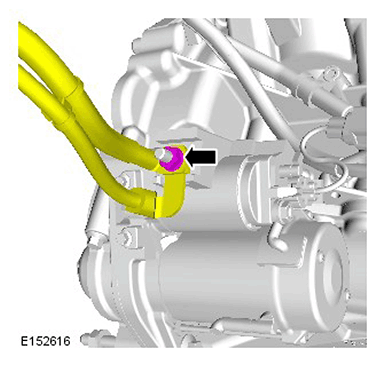

  7. G11416445

    Torque Specification: 12 Nm

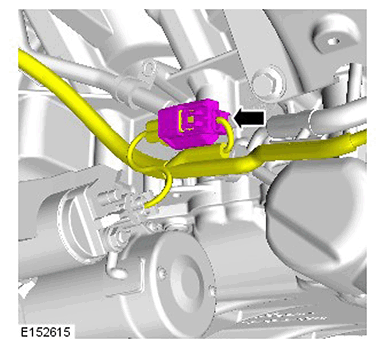

  8. G11416446

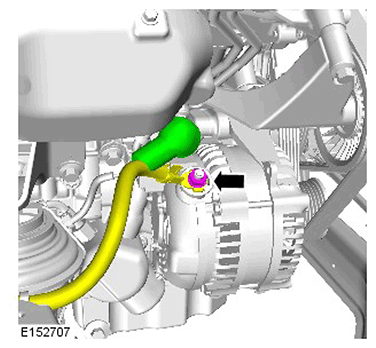

  9. G11416447

    Torque Specification: 12 Nm

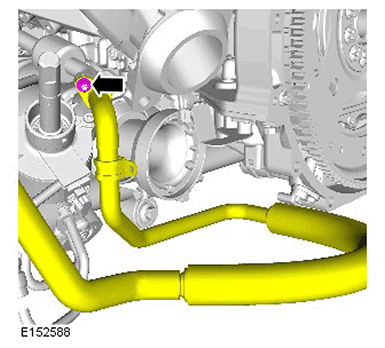

  10. CAUTION: A new O-ring seal is to be installed.
    G11416448

    Torque Specification: 18 Nm

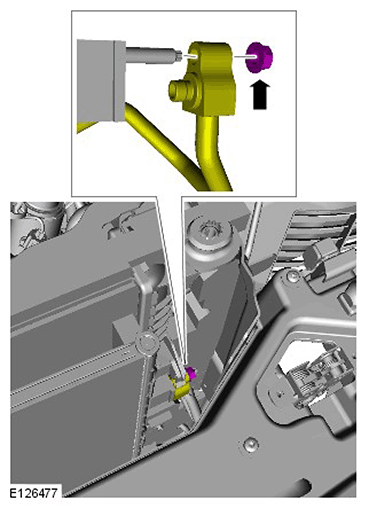

  11. CAUTION: A new O-ring seal is to be installed.
    G11416449

    Torque Specification: 18 Nm

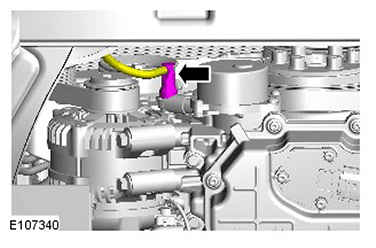

  12. G11416450

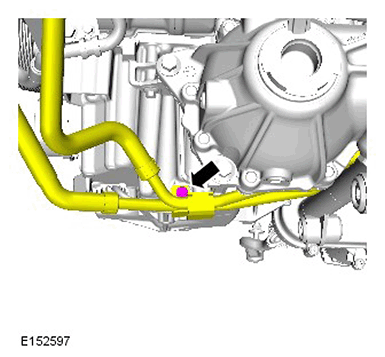

  13. G11416451

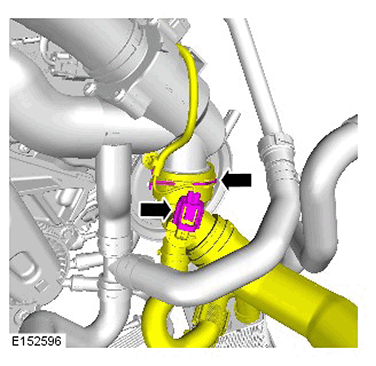

  14. G11416452

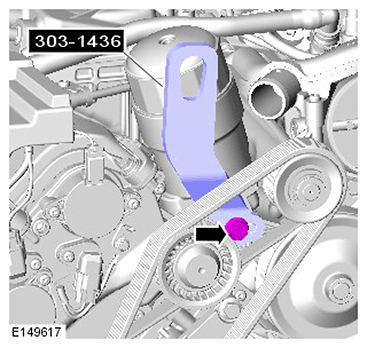

  15. G11416453

    Remove the special tool.

    Special Tool(s):  303-1436

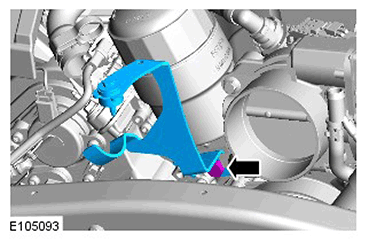

  16. G11416454

    Torque Specification: 25 Nm

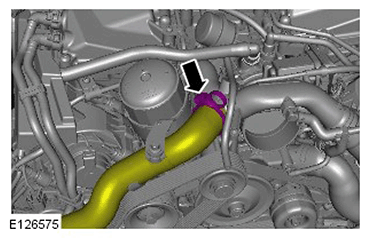

  17. G11416455

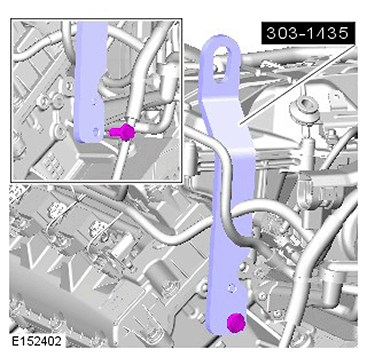

  18. G11416456

    Remove the special tool.

    Special Tool(s):  303-1435

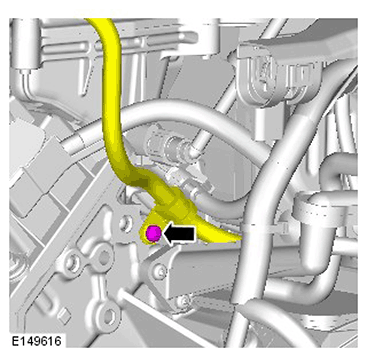

  19. G11416457

    Torque Specification: 12 Nm

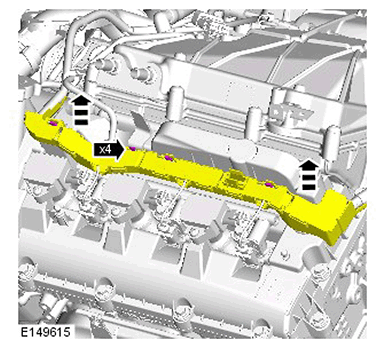

  20. G11416458

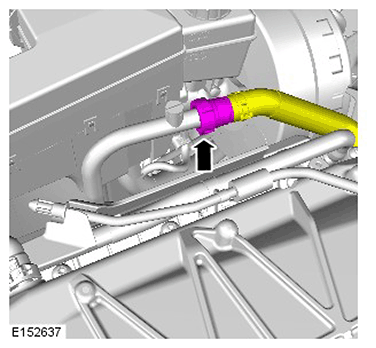

  21. G11416459

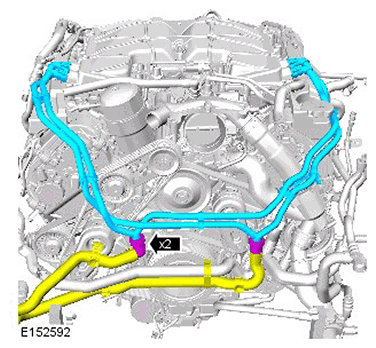

  22. G11416460

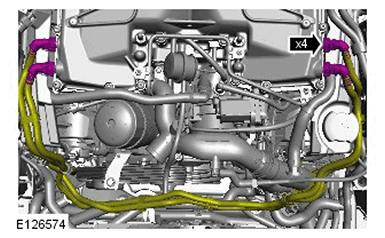

  23. G11416461

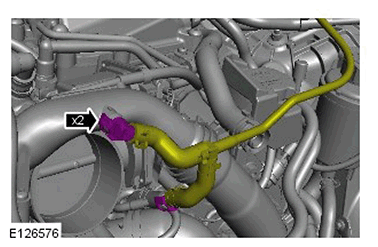

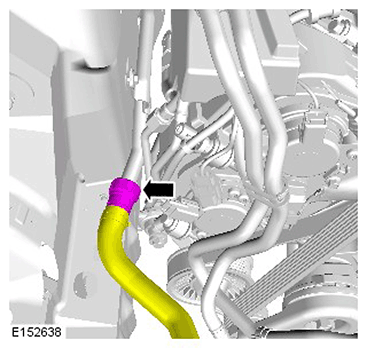

  24. G11416462

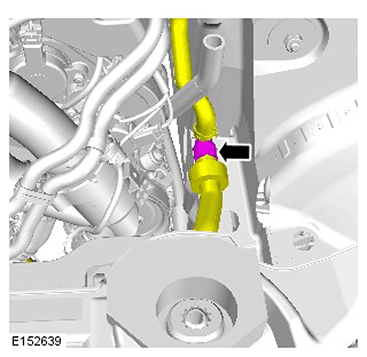

  25. G11416463
  26. G11416464

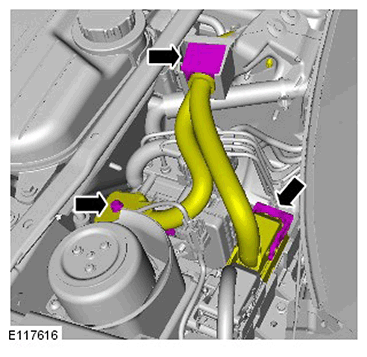

  27. NOTE: Left Hand illustration shown, Right Hand is similar.
    G11416465

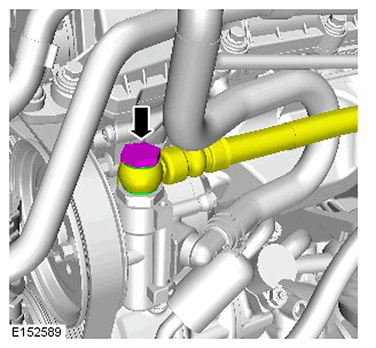

  28. CAUTION: Make sure that new sealing washers are installed.
    G11416466

    Torque Specification: 25 Nm

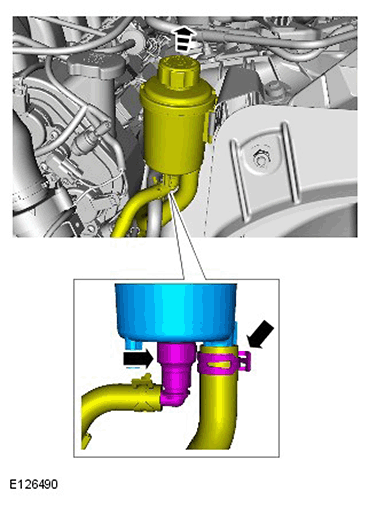

  29. G11416467

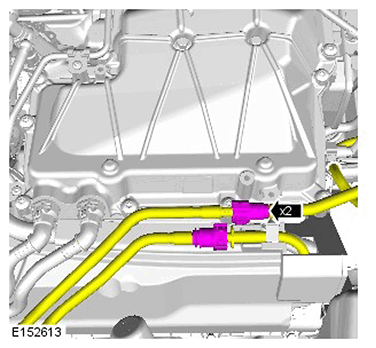

  30. G11416468

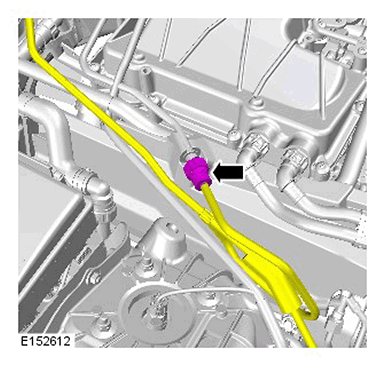

  31. G11416469
  32. Refer to: Transmission (Automatic Transmission/Transaxle - V6 S/C 3.0L Petrol, AWD, Installation).
  33. Refer to: Cooling Fan Motor and Shroud (V6 S/C 3.0L Petrol, Removal and Installation).
  34. Refer to: Secondary Bulkhead Right Panel - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Front End Body Panels, Removal and Installation).
  35. Refer to: Secondary Bulkhead Left Panel - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (Front End Body Panels, Removal and Installation).
  36. Refer to: Hood (Front End Body Panels, Removal and Installation).
  37. Refer to: Air Conditioning System Recovery, Evacuation and Charging (Climate Control System - General Information, General Procedures).
  38. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  39. Refer to: Cooling System Partial Draining, Filling and Bleeding (V6 S/C 3.0L Petrol, General Procedures).
  40. Refer to: Power Steering System Bleeding (Steering System - General Information, General Procedures).
