Right Mid Catalyst Heated Oxygen Sensor (G1557453): Notes

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

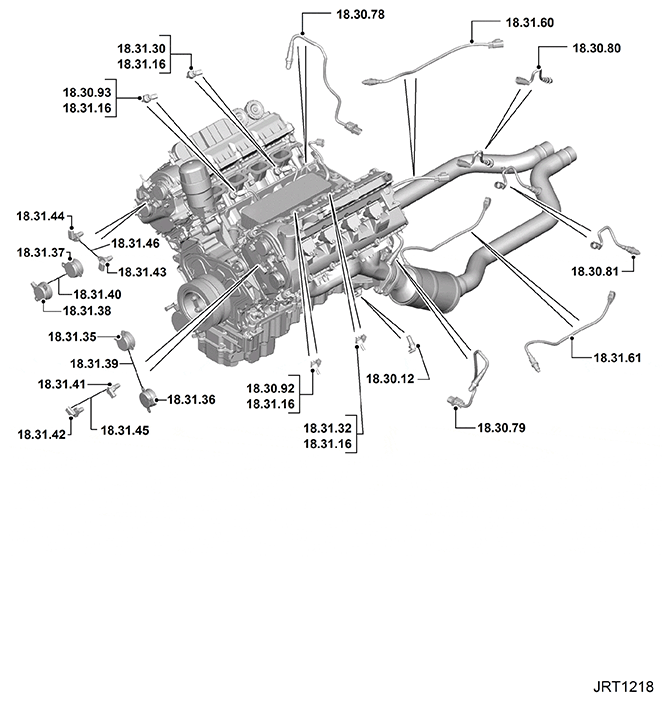

18.30.80 HEATED OXYGEN SENSOR 2 - BANK 1 - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 0.7
G11417106
18.30.80 HEATED OXYGEN SENSOR 2 - BANK 1 - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 0.6
18.30.80 HEATED OXYGEN SENSOR 2 - BANK 1 - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 4WD 0.7
G11417107
18.30.80 HEATED OXYGEN SENSOR 2 - BANK 1 - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 4WD 0.6
18.30.80 HEATED OXYGEN SENSOR 2 - BANK 1 - RENEW 5000 CC, AJ V8 1.1
G11417108
18.31.60 HEATED OXYGEN SENSOR (HO2S) - MID CATALYST - RIGHT BANK - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 0.6
G11417109
18.31.60 HEATED OXYGEN SENSOR (HO2S) - MID CATALYST - RIGHT BANK - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 4WD 0.6
G11417110

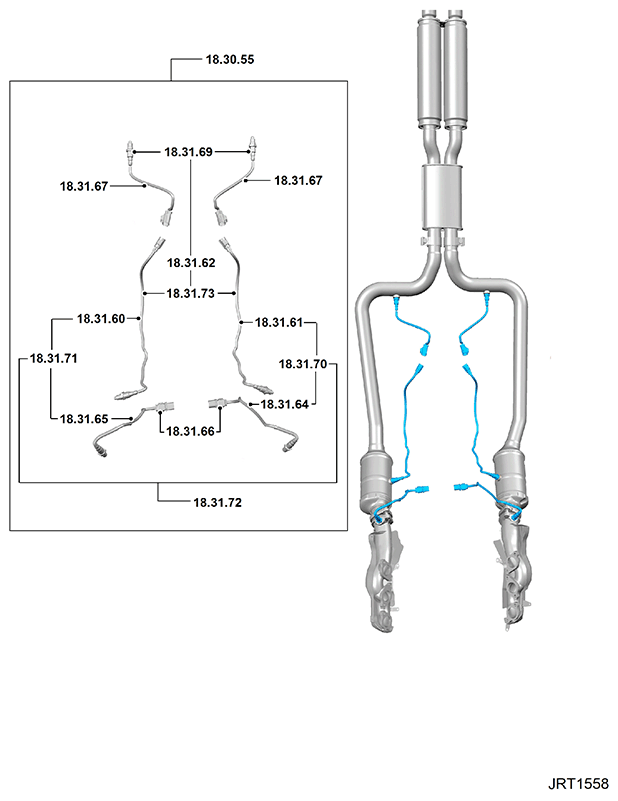

18.31.60 HEATED OXYGEN SENSOR (HO2S) - MID CATALYST - RIGHT BANK - RENEW 5000 CC, AJ V8 0.6
G11417111
