Right Knock Sensor (G1551390): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Supercharger (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).

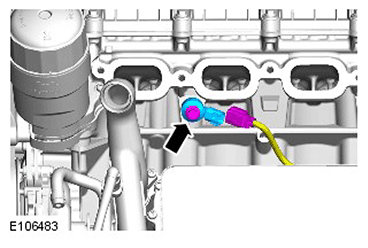

G11417078

Torque Specification: 20 Nm
