Post Catalyst Heated Oxygen Sensor - RWD (G1557451): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Left-hand shown, right-hand similar.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Transmission Support Insulator - GTDi 2.0L Petrol/TD4 2.2L Diesel/TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Removal and Installation).
  3. CAUTION: Make sure that the mating faces are clean and free of corrosion and foreign material.

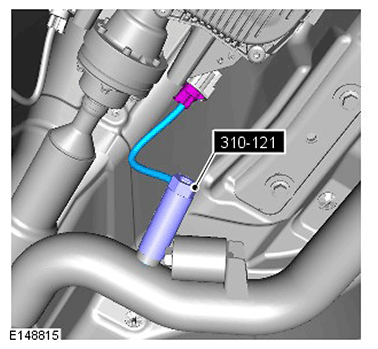

    G11417101

    Special Tool(s):  310-121

    Torque Specification: 48 Nm
