Left Variable Valve Timing Oil Control Solenoid (G1550204): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: ELECTRIC THERMOSTAT (G1772758) (V6 S/C 3.0L Petrol, Removal and Installation).

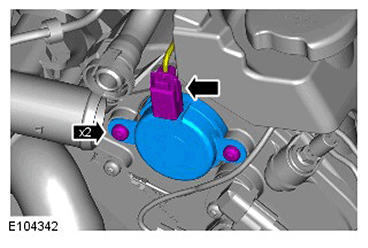

  3. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11417116

    Torque Specification: 10 Nm

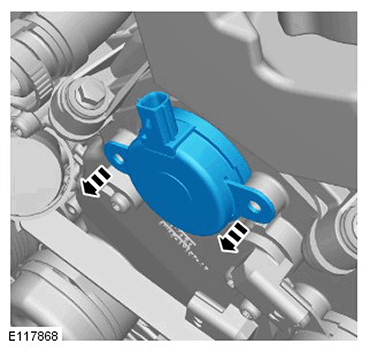

  4. CAUTION: Evenly and progressively, remove the VVT units from each side.
    NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11417117
