Left Mid Catalyst Heated Oxygen Sensor (G1557450): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Left Catalytic Converter - AWD (Exhaust System - V6 S/C 3.0L Petrol, Removal and Installation).
  3. CAUTION: Make sure that the mating faces are clean and free of foreign material.

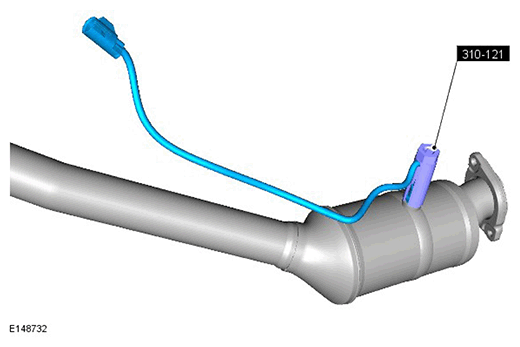

    G11417083

    Special Tool(s):  310-121

    Torque Specification: 48 Nm
