Left Knock Sensor (G1551389): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Refer to: Supercharger (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).

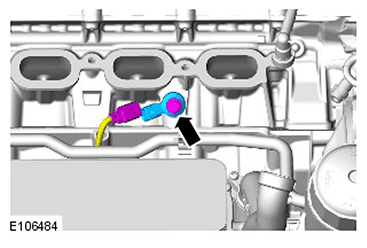

G11417076

Torque Specification: 20 Nm
