Left Camshaft Position Sensor (G1550187): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Remove the electronic thermostat.

    Refer to: ELECTRIC THERMOSTAT (G1772758) (V6 S/C 3.0L Petrol, Removal and Installation).

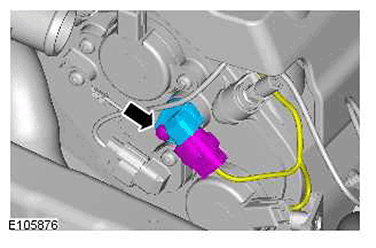

  2. G11417021
    • Disconnect the electrical connector.
    • Remove the Camshaft Position (CMP) sensor retaining bolt.
    • Remove the CMP sensor.
