Left Camshaft Position Sensor (G1550187): Installation

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that the sensor tip is clean and free of foreign material.
    NOTE: Lubricate the O-ring seal with clean engine oil.

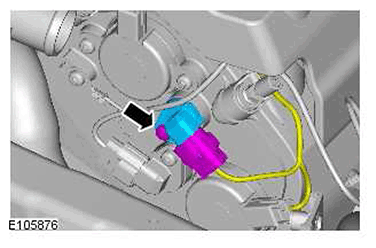

    G11417022
    • Install the Camshaft Position (CMP) sensor.
    • Install the CMP sensor retaining bolt.

      Torque Specification: 10 Nm

    • Connect the electrical connector.
  2. Install the electronic thermostat.

    Refer to: ELECTRIC THERMOSTAT (G1772758) (V6 S/C 3.0L Petrol, Removal and Installation).
