Fuel Rail Pressure Sensor (G1574258): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Make sure that all openings are sealed. Use new blanking caps.
Make sure that the tools and equipment are clean, free of foreign material and lubricant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (General Information, Description and Operation).
Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
Refer to: Engine Cover - V6 S/C 3.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
Refer to: Secondary Bulkhead Right Panel - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Front End Body Panels, Removal and Installation).
Refer to: Fuel System Pressure Release - V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (Fuel System - General Information, General Procedures).
Refer to: Fuel Injection Component Cleaning (V6 S/C 3.0L Petrol, General Procedures).

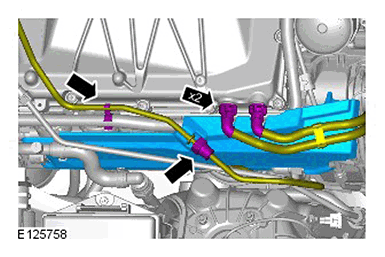

CAUTION: Cap the coolant pipe ends immediately to minimize coolant loss.

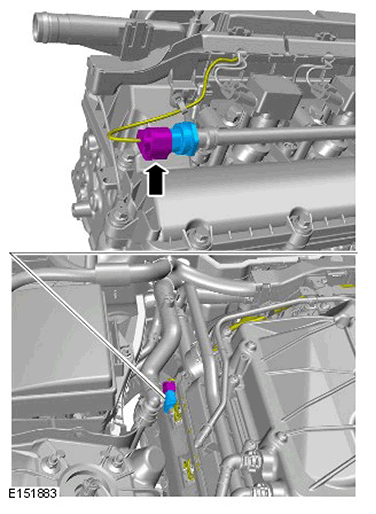

CAUTION: Be prepared to collect escaping fluids.

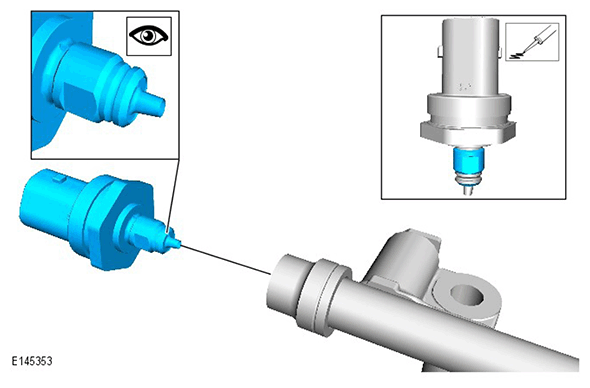

NOTE: During lubrication, keep the component vertically as shown.

Lubricate with Molykote W15 as shown.

Torque Specification: 38 Nm
