Fuel Rail Pressure Sensor (G1574258): Notes

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

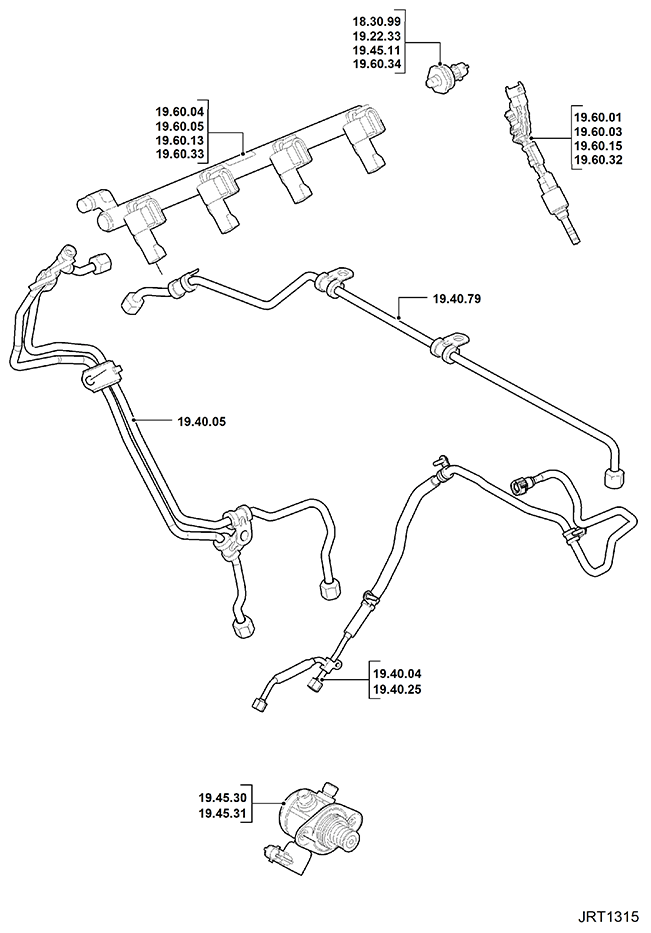

19.60.34 FUEL DIVERTER RAIL AND FUEL INJECTION PRESSURE SENSOR ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED 1.1
G11417123
19.60.34 FUEL DIVERTER RAIL AND FUEL INJECTION PRESSURE SENSOR ASSEMBLY - RENEW 5000 CC, AJ V8 1
G11417124

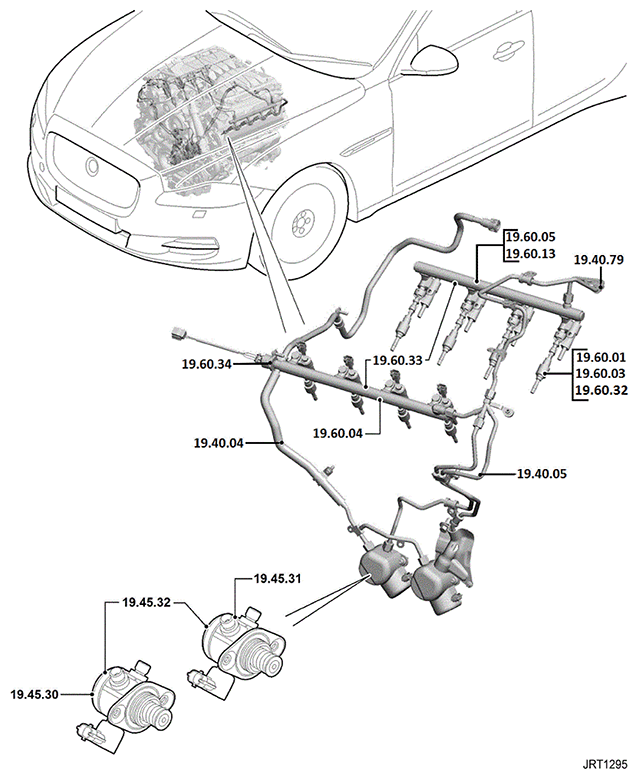

19.60.34 FUEL DIVERTER RAIL AND FUEL INJECTION PRESSURE SENSOR ASSEMBLY - RENEW 5000 CC, AJ V8, SUPERCHARGED 1.4
G11417125
