Engine Oil Level Sensor (G1550194): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Engine Oil Draining and Filling (V6 S/C 3.0L Petrol, General Procedures).
  3. CAUTION:
    • Be prepared to collect escaping fluids.
    • Before the disconnection or removal of any components, make sure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.

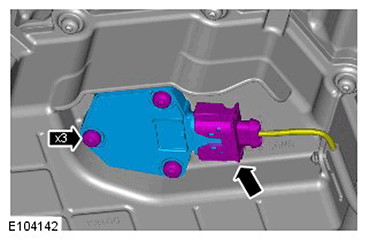

    G11417054

    Torque Specification: 12 Nm
