Engine Control Module (G1550192): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. Refer to: Cowl Vent Screen (Front End Body Panels, Removal and Installation).

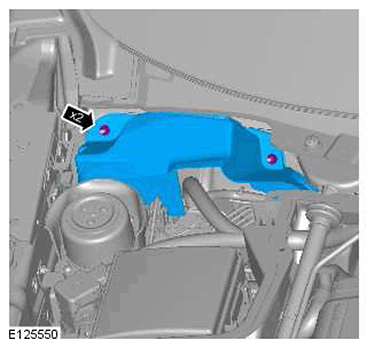

  3. CAUTION: RH illustration shown, LH is similar.
    G11417038

    Torque Specification: 7 Nm

  4. CAUTION: Before disconnecting or removing components, ensure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

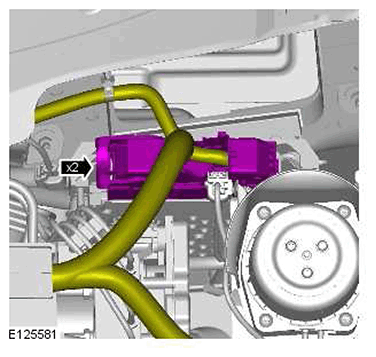

    NOTE: LH illustration shown, RH is similar.
    G11417039

    Left-hand drive vehicles

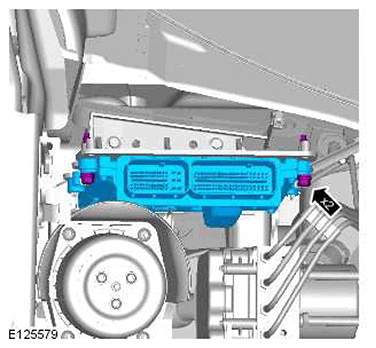

  5. G11417040

    Torque Specification: 7 Nm

    Right-h and drive vehicles

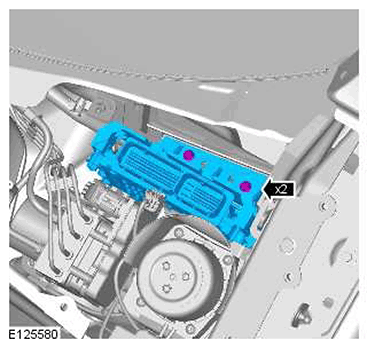

  6. G11417041

    Torque Specification: 7 Nm

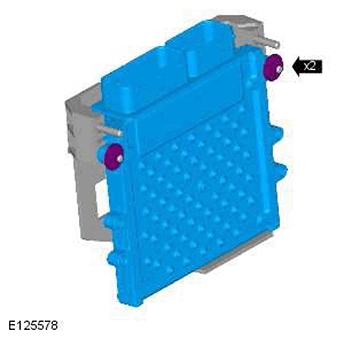

  7. G11417042

    Torque Specification: 7 Nm
