Heated Oxygen Sensor (HO2S) location

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

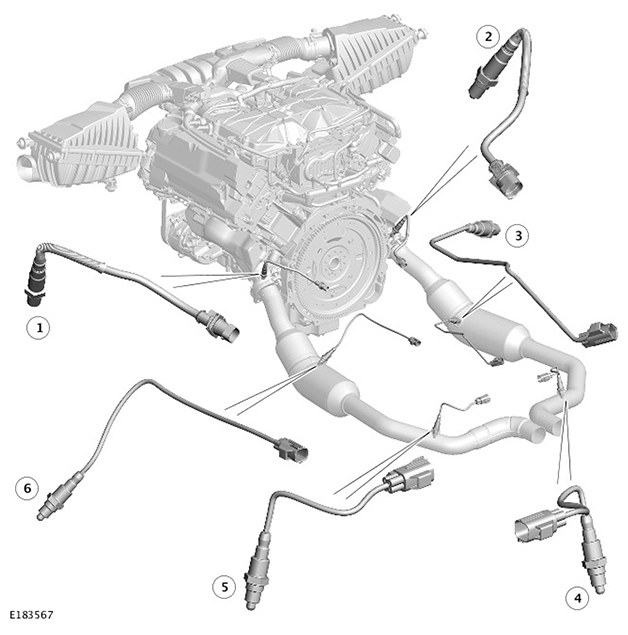

G11417018
ITEM DESCRIPTION
1 Heated Oxygen Sensor (HO2S) - Pre catalyst - Bank 2 sensor 1
2 Heated Oxygen Sensor (HO2S) - Pre catalyst - Bank 1 sensor 1
3 Heated Oxygen Sensor (HO2S) - Mid catalyst - Bank 1 sensor 2
4 Heated Oxygen Sensor (HO2S) - Post catalyst - Bank 1 sensor 3
5 Heated Oxygen Sensor (HO2S) - Post catalyst - Bank 2 sensor 3
6 Heated Oxygen Sensor (HO2S) - Mid catalyst - Bank 2 sensor 2
