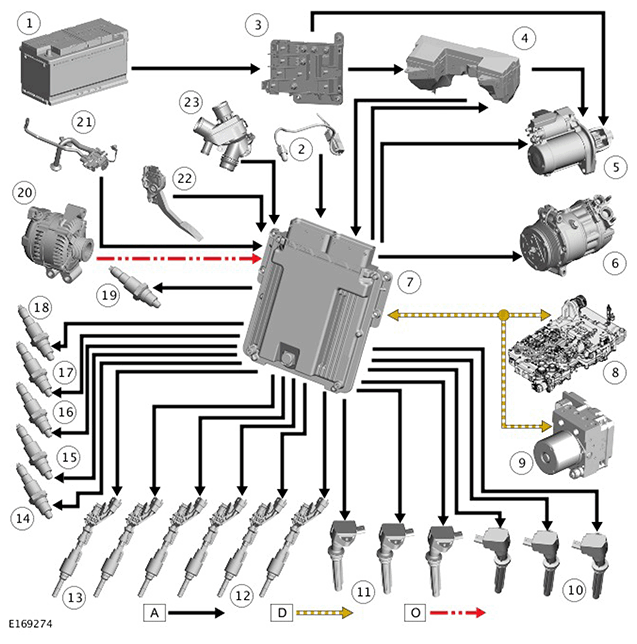

Control Diagram Sheet 1 Of 2
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Ambient Air Temperature (AAT) sensor |
| 3 | Megafuse |
| 4 | Engine Junction Box (EJB) |
| 5 | Starter motor |
| 6 | Air conditioning (A/C) compressor (magnetic clutch) |
| 7 | Engine Control Module (ECM) |
| 8 | Transmission Control Module (TCM) |
| 9 | Anti-lock Brake System (ABS) control module |
| 10 | Ignition coils - Bank 2 (3 off) |
| 11 | Ignition coils - Bank 1 (3 off) |
| 12 | Injectors - Bank 2 (3 off) |
| 13 | Injectors - Bank 1 (3 off) |
| 14 | Heated oxygen sensor (HO2S) - Pre catalyst - Bank 2 |
| 15 | HO2S - Mid catalyst - Bank 2 |
| 16 | HO2S - Post catalyst - Bank 2 |
| 17 | HO2S - Pre catalyst - Bank 1 |
| 18 | HO2S - Mid catalyst - Bank 1 |
| 19 | HO2S - Post catalyst - Bank 1 |
| 20 | Generator |
| 21 | Electric oil pump |
| 22 | Accelerator Pedal Position (APP) sensor |
| 23 | Electric thermostat |
