Component Location - Sheet 4 Of 5

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

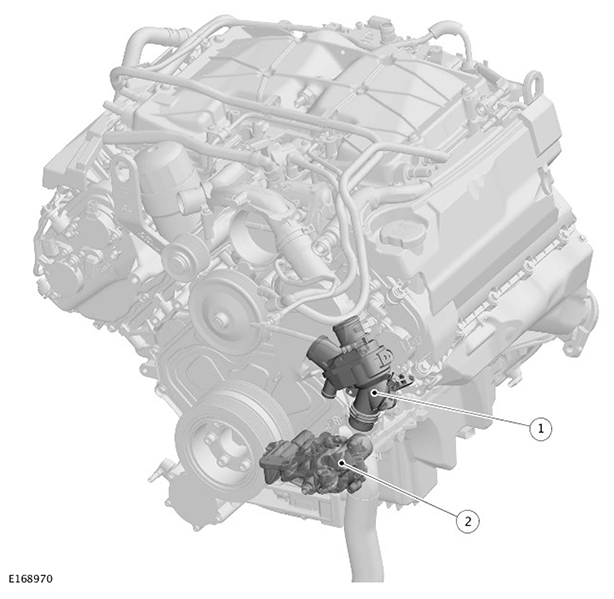

G11417000
ITEM DESCRIPTION
1 Electronic thermostat
2 Electronic oil pump

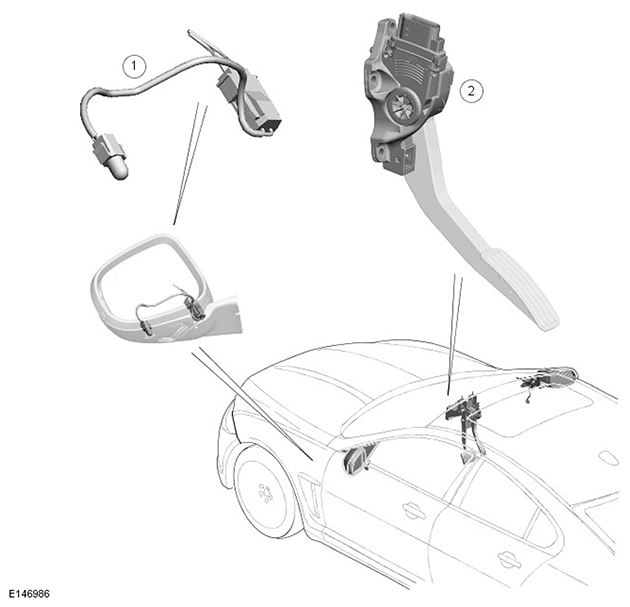

G11417001
ITEM DESCRIPTION
1 Ambient Air Temperature (AAT) sensor
2 Accelerator Pedal Position (APP) sensor
