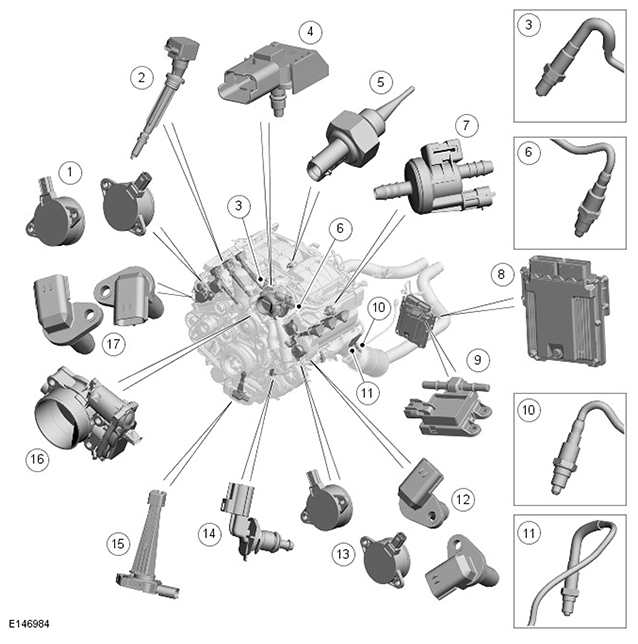

Component Location - Sheet 1 Of 45
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Variable Camshaft Timing (VCT) actuators - Bank 1 |
| 2 | Ignition coil (6 off) |
| 3 | Pre catalyst Heated Oxygen Sensor (HO2S) Bank 1 |
| 4 | Manifold Absolute Pressure (MAP) sensor |
| 5 | Supercharger charge air temperature sensor |
| 6 | Mid catalyst Heated Oxygen Sensor (HO2S) Bank 1 |
| 7 | Purge valve |
| 8 | Engine Control Module (ECM) |
| 9 | Flex Fuel Sensor (FFS) - NAS only |
| 10 | Mid catalyst Heated Oxygen Sensor (HO2S) - Bank 2 |
| 11 | Pre catalyst Heated Oxygen Sensor (HO2S) - Bank 2 |
| 12 | Camshaft Position (CMP) sensors - Bank 2 |
| 13 | Variable Camshaft Timing (VCT) actuators - Bank 2 |
| 14 | Engine Coolant Temperature (ECT) sensor 2 |
| 15 | Oil level and temperature sensor |
| 16 | Electric throttle |
| 17 | Camshaft Position (CMP) sensors - Bank 1 |
