Transmission Control Switch (G979431): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. Refer to: Audio and Climate Control Assembly (Information and Entertainment System, Removal and Installation).

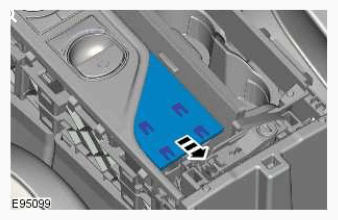

  3. G11423727

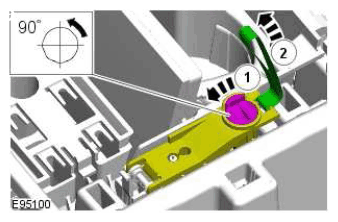

  4. G11423728

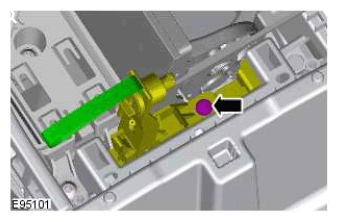

  5. G11423729

    Torque Specification: 4 Nm

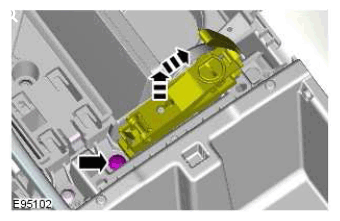

  6. G11423730

    Torque Specification: 4 Nm

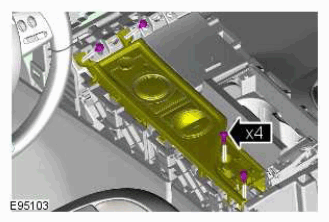

  7. G11423731

    Torque Specification: 4 Nm

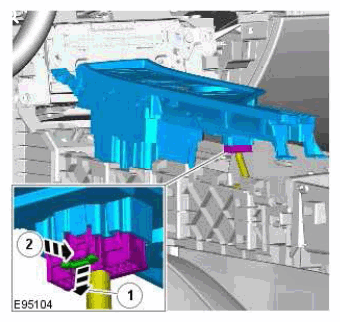

  8. G11423732
