Air Conditioning Compressor - V8 S/C 5.0L Petrol: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XF, 2014 Jaguar XF, 2013 Jaguar XF, 2012 Jaguar XF, and 2011 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Wheel and Tire (Removal and Installation).
  4. Refer to: Air Conditioning System Recovery, Evacuation and Charging (General Procedures).
  5. Refer to: Specifications (Specifications).
  6. Refer to: Refrigerant Oil Adding (General Procedures).

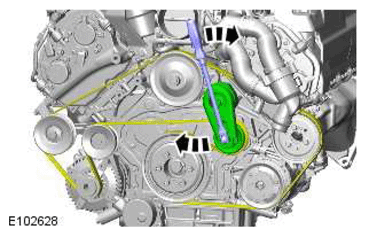

  7. G11424555
  8. CAUTION:
    • Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.
    • Make sure that all openings are sealed. Use new blanking caps.

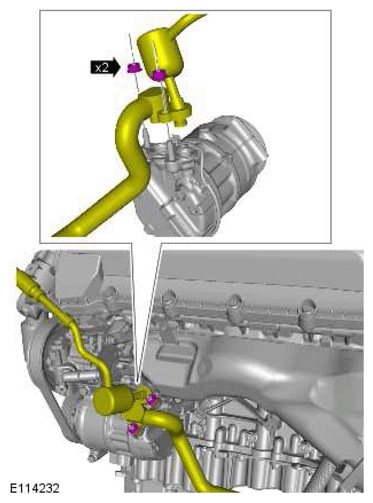

    G11424556

    Torque Specification: 9 Nm

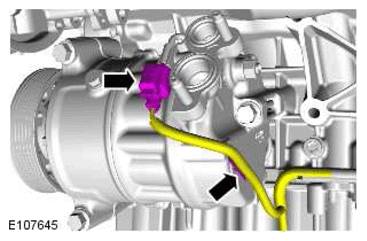

  9. G11424557
  10. CAUTION:
    • Make sure that all openings are sealed. Use new blanking caps.
    • Take care not to damage the O-ring seals during installation.

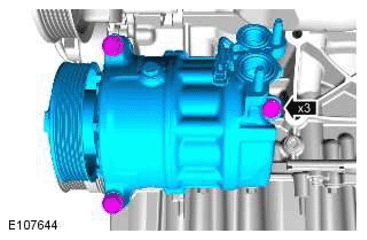

    G11424558

    Torque Specification: 25 Nm
