Air Conditioning Compressor - V6 S/C 3.0L Petrol, Vehicles With: 8HP70 8-Speed Automatic Transmission RWD: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Jaguar XF, 2014 Jaguar XF, 2013 Jaguar XF, 2012 Jaguar XF, and 2011 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Air Conditioning System Recovery, Evacuation and Charging (General Procedures).
  3. Refer to: Air Deflector (Removal and Installation).

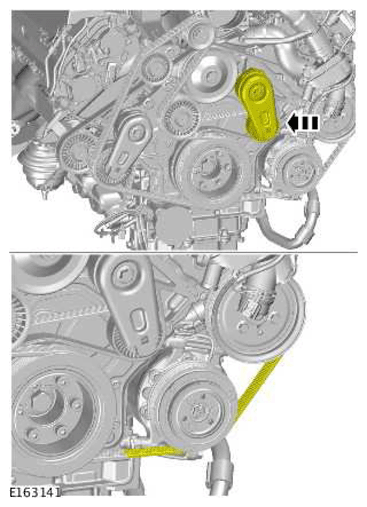

  4. G11424530

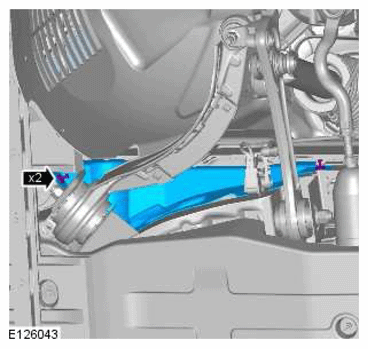

  5. G11424531

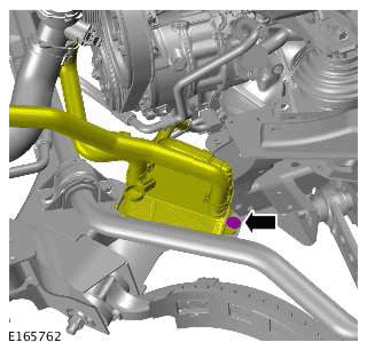

  6. G11424532

    Detach the transmission oil cooler and move it aside for access.

    Torque Specification: 5 Nm

  7. CAUTION: Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.
    NOTE: Make sure that all openings are sealed. Use new blanking caps.

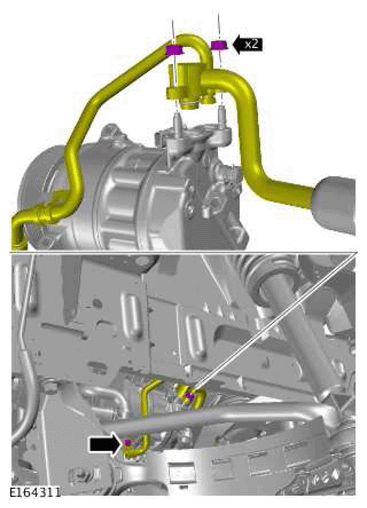

    G11424533

    Torque Specification: 9 Nm

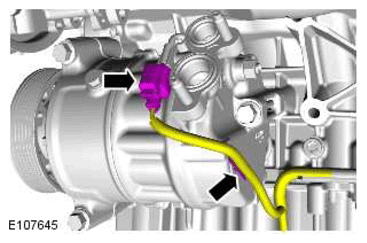

  8. G11424534

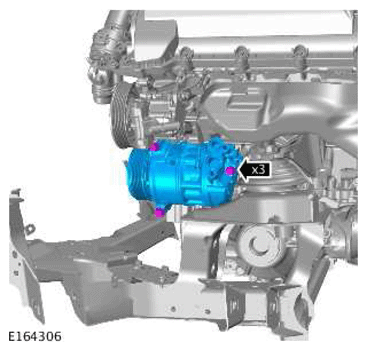

  9. G11424535

    Torque Specification: 25 Nm
