Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  2. Refer to: Supercharger (303-12A Intake Air Distribution and Filtering - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  3. Refer to: Secondary Bulkhead Panel RH - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (501-02 Front End Body Panels, Removal and Installation).
  4. Refer to: Air Cleaner Outlet Pipe RH (303-12A Intake Air Distribution and Filtering - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  5. Refer to: Fuel Rail RH (303-04A Fuel Charging and Controls - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  6. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

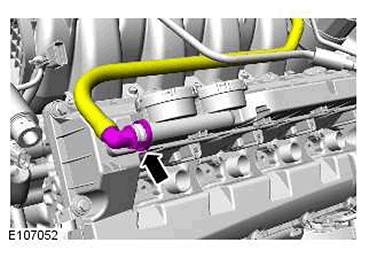

    G11415111
  7. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

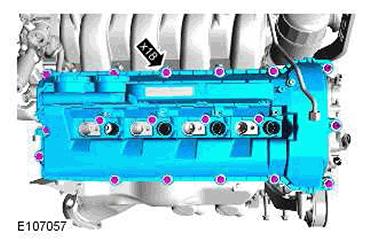

    G11415112
