Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION:
    • Use only a plastic scraper when removing the sealing material.
    • Use lint free cloth.
    • Make sure that the mating faces are clean and free of corrosion and foreign material.
    • Installation of the valve cover and tightening must be carried out within 7 minutes of applying the sealant.

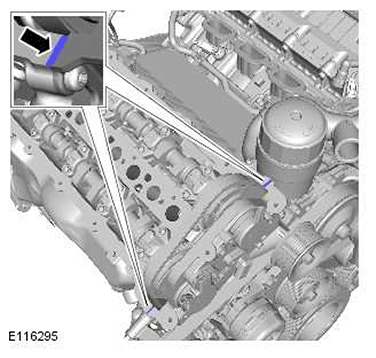

    NOTE: Apply two beads of silcone gasket sealant (Loctite 5901) as shown on the illustration. The application of the sealant must be 1.5mm diameter 12mm long. Install the valve cover immediately after applying the sealant. The cover should be fitted directly to the head without smearing the sealant or the seals.
    G11415113

    To install, reverse the removal procedure.

  2. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11415114

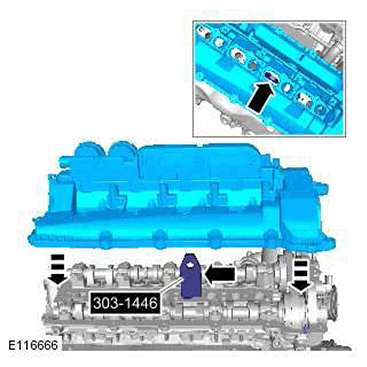

    Special Tool(s):  303-1446

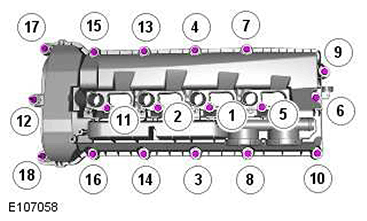

  3. NOTE: Tighten the bolts in the indicated sequence.
    G11415115

    Torque: 13 Nm
