Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Check all timing components for wear and install new components if required.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the engine removed for clarity.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 1.

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Timing Cover  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

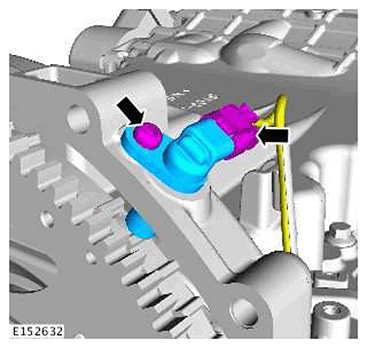

  4. G11415044
  5. CAUTION: Only rotate the crankshaft clockwise.

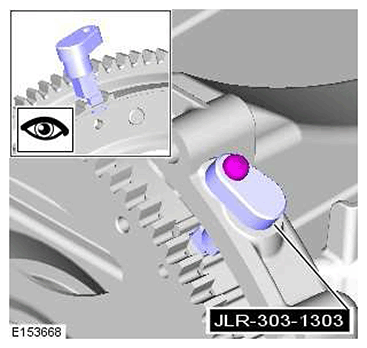

    G11415045

    Install the special tool.

    Special Tool(s):  JLR-303-1303

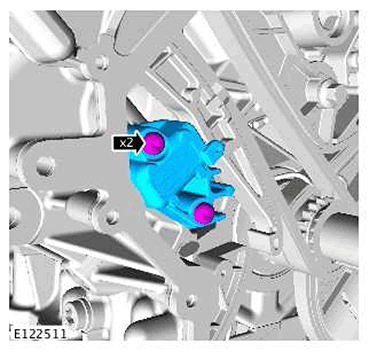

  6. G11415046

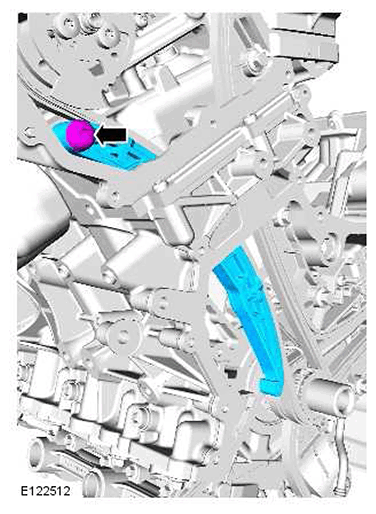

  7. G11415047

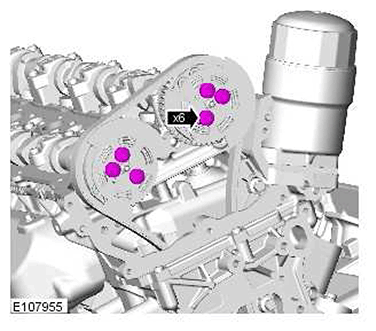

  8. G11415048
  9. CAUTION: If the variable valve timing (VVT) units are knocked or dropped then the VVT must be replaced.

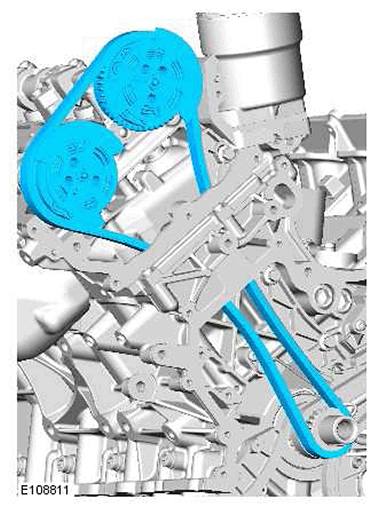

    G11415049

    Remove the timing chain with the VVT units.

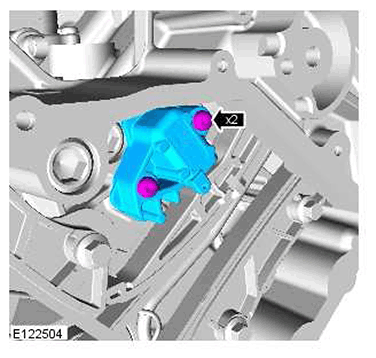

  10. G11415050

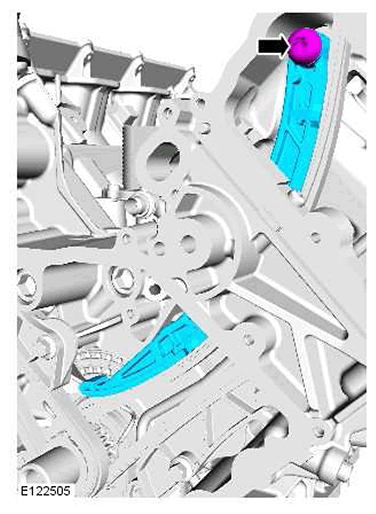

  11. G11415051

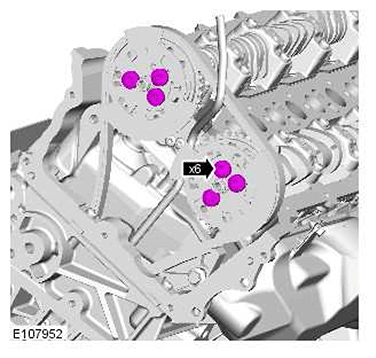

  12. G11415052
  13. CAUTION: If the VVT is knocked or dropped then the VVT must be replaced.

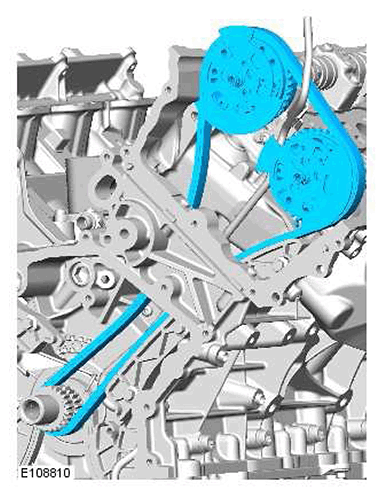

    G11415053

    Remove the timing chain with the VVT units.

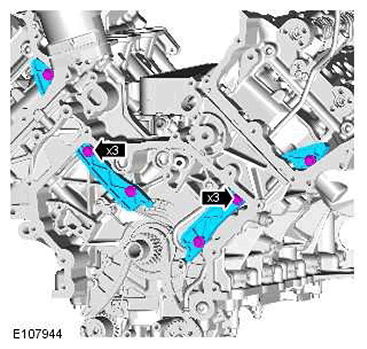

  14. G11415054
  15. CAUTION: Discard the friction washer.

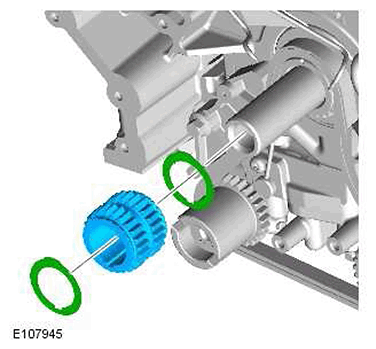

    G11415055
