Removal And Installation: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

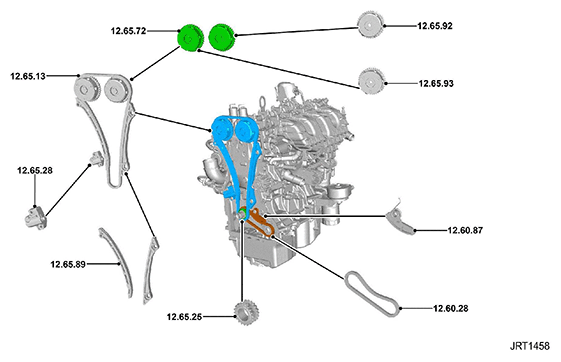

12.65.13 TIMING CHAINS, GEARS AND TENSIONERS - ENGINE SET - RENEW 2000 CC, GTDI 5.2
G11415036

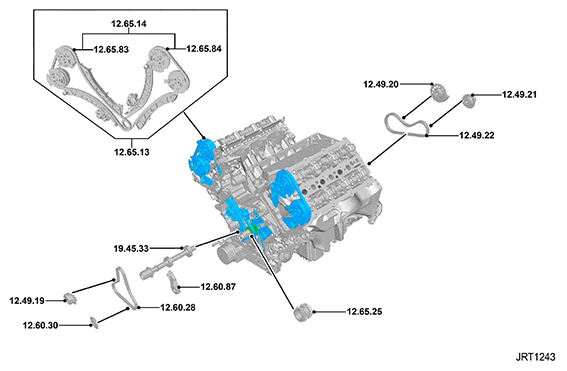

12.65.13 TIMING CHAINS, GEARS AND TENSIONERS - ENGINE SET - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED 15.2
G11415037

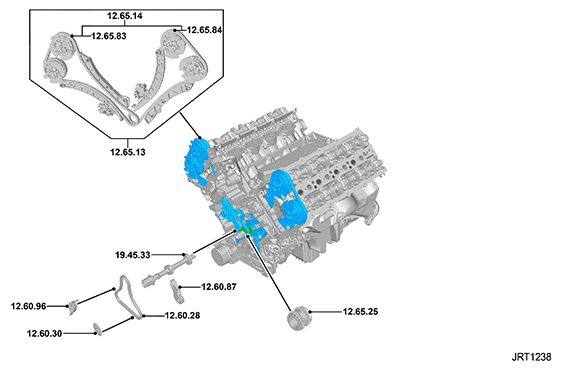

12.65.13 TIMING CHAINS, GEARS AND TENSIONERS - ENGINE SET - RENEW 5000 CC, AJ V8, SUPERCHARGED 14.7
G11415038
