Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: *** Accessory Drive Belt (303-05A Accessory Drive - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  4. Refer to: *** Accessory Drive Belt Tensioner (303-05A Accessory Drive - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  5. Refer to: Thermostat Housing (303-03A Engine Cooling - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  6. Refer to: Valve Cover LH  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  7. Refer to: Valve Cover RH  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  8. Refer to: Crankshaft Pulley  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

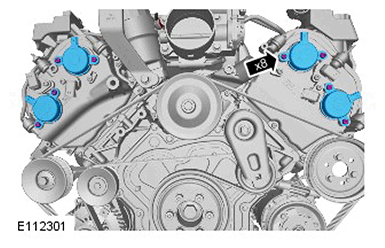

  9. NOTE: Engine shown removed for clarity.
    G11415021

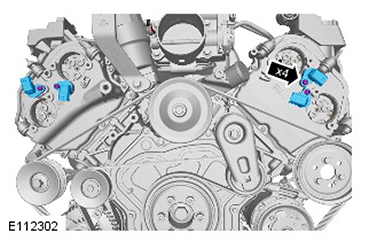

  10. NOTE: Engine shown removed for clarity.
    G11415022

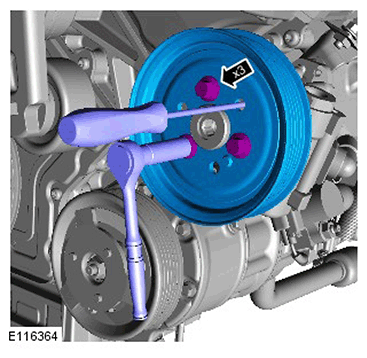

  11. NOTE: Engine shown removed for clarity.
    G11415023

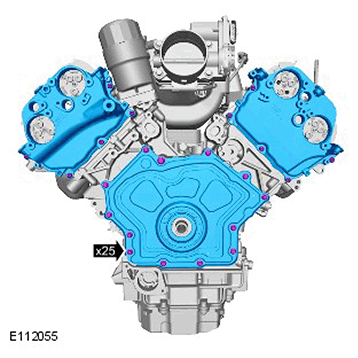

  12. NOTE: Engine shown removed for clarity.
    G11415024
