Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

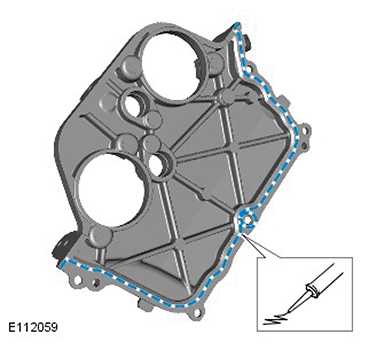

  1. G11415025
    • Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.

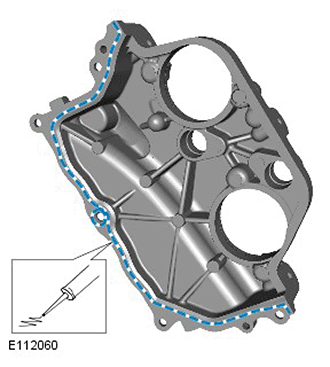

  2. G11415026
    • Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.

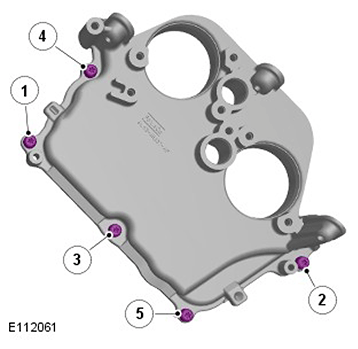

  3. NOTE: Tighten the bolts in the indicated sequence.
    G11415027

    Torque: 12 Nm

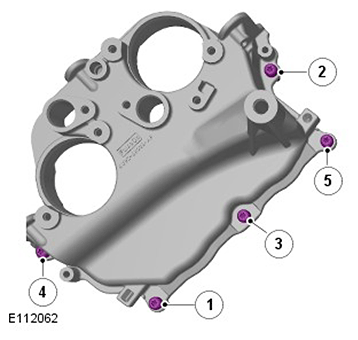

  4. NOTE: Tighten the bolts in the indicated sequence.
    G11415028

    Torque: 12 Nm

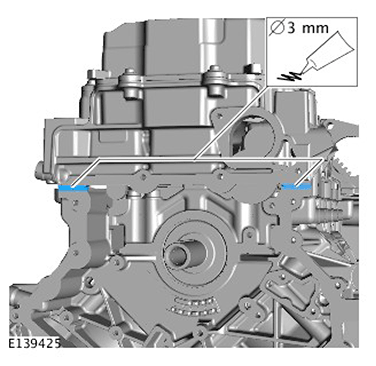

  5. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G11415029

    Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.

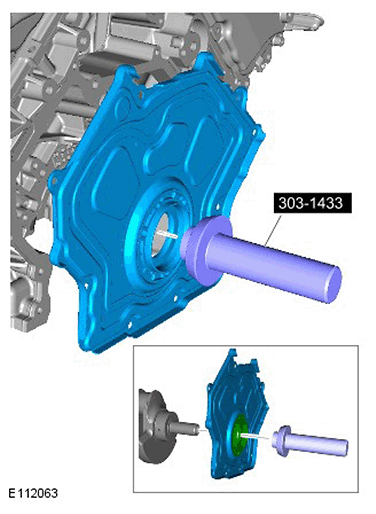

  6. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G11415030

    Install the bolts, but do not tighten fully at this stage.

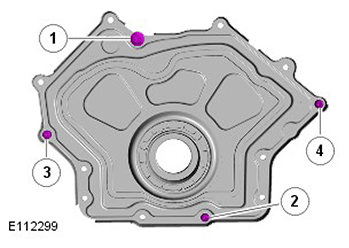

  7. NOTE: Tighten the bolts in the indicated sequence.
    G11415031

    Torque: 12 Nm

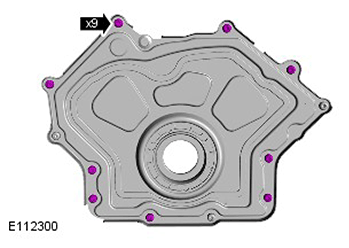

  8. G11415032

    Torque: 12 Nm

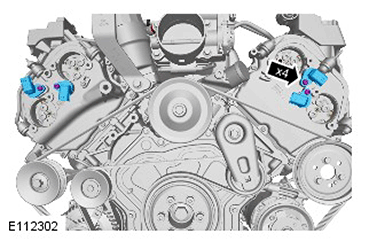

  9. G11415033

    Torque: 12 Nm

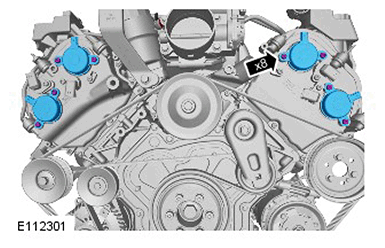

  10. G11415034

    Torque: 12 Nm

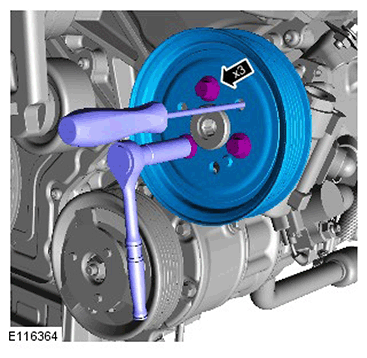

  11. G11415035

    Torque: 25 Nm

  12. Refer to: Crankshaft Pulley  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  13. Refer to: Valve Cover RH  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

  14. Refer to: Valve Cover LH  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

  15. Refer to: Thermostat Housing (303-03A Engine Cooling - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  16. Refer to: *** Accessory Drive Belt Tensioner (303-05A Accessory Drive - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  17. Refer to: *** Accessory Drive Belt (303-05A Accessory Drive - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  18. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
