Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:
- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.

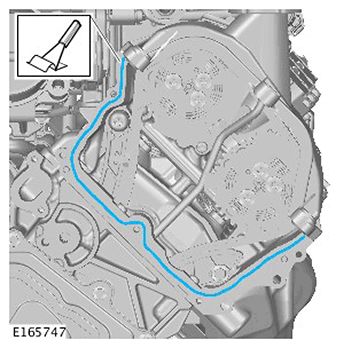

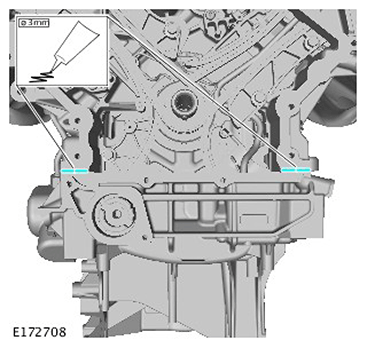

Apply RTV sealant (Loctite 5901G) to the areas shown.
CAUTION: Make sure that a new component is installed.

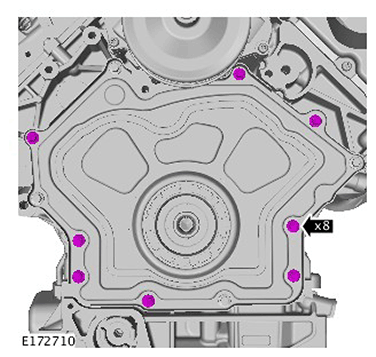

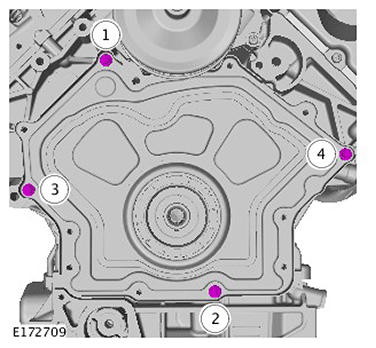

NOTE: Tighten the retaining bolts in the indicated sequence.

Tighten the lower timing cover bolts within 7 minutes.

Torque: 12 Nm
Tighten the lower timing cover bolts within 7 minutes.

Torque: 12 Nm

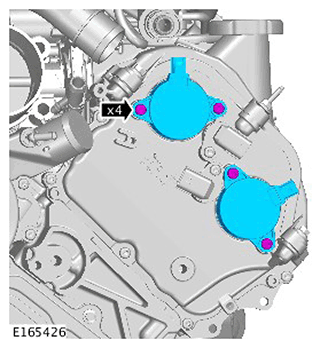

NOTE: Lubricate the O-ring seal with clean engine oil.

Torque: 12 Nm
CAUTION:
- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.

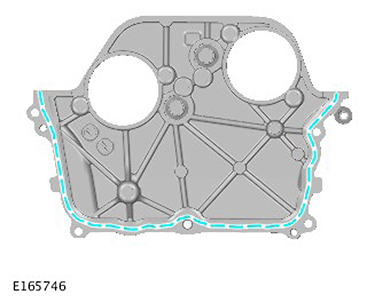

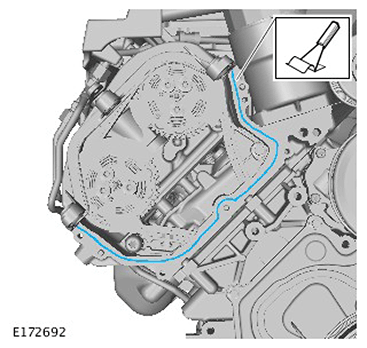

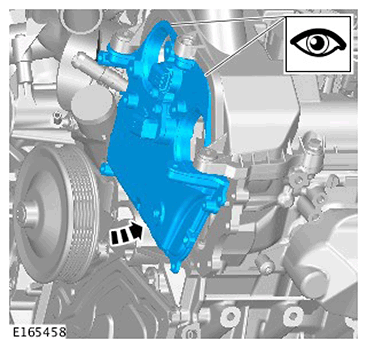

Apply RTV sealant (Loctite 5901G) to the areas shown, install the component, and tighten the bolts within 7 minutes.
CAUTION: Take extra care not to damage the seal when installing the component.

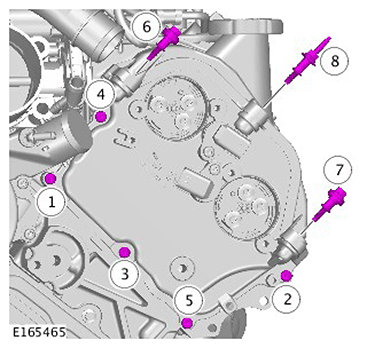

NOTE: Tighten the retaining bolts in the indicated sequence.

Torque: 12 Nm
Torque: 12 Nm
Torque: 10 Nm
CAUTION: Using a suitable tool, lock the component.

Torque: 25 Nm
CAUTION:
- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.

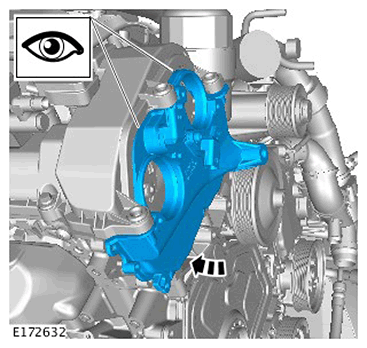

Apply RTV sealant (Loctite 5901G) to the areas shown, install the component, and tighten the bolts within 7 minutes.
CAUTION: Take extra care not to damage the seal when installing the component.

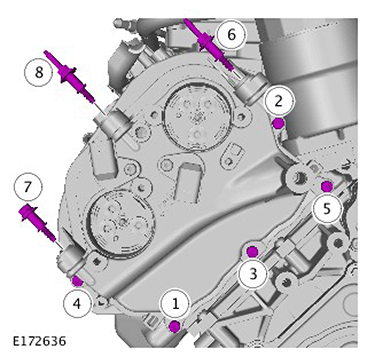

NOTE: Tighten the retaining bolts in the indicated sequence.

13

Torque: 12 Nm
Torque: 12 Nm
Torque: 10 Nm
Torque: 48 Nm
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

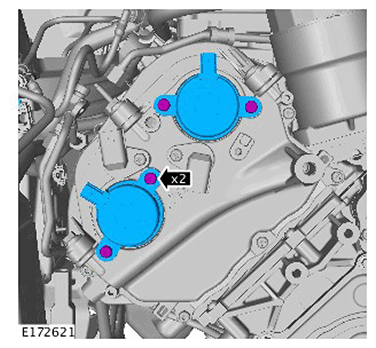

Torque: 10 Nm
CAUTION:
- Lubricate only the union threads with clean engine oil.
- Only tighten the bolts finger-tight at this stage.
NOTE: Remove and discard the blanking caps.

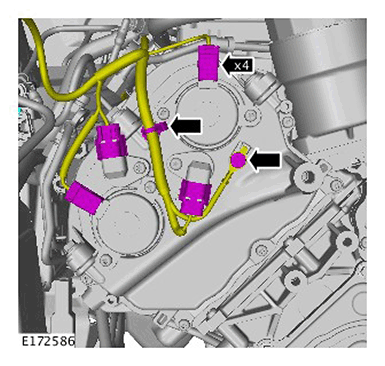

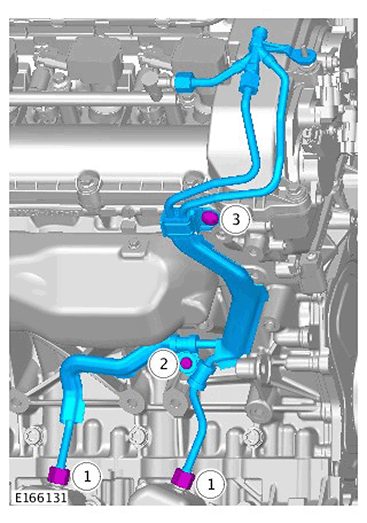

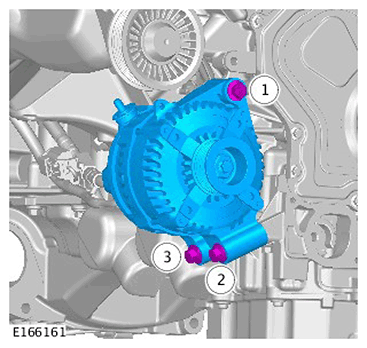

Torque:

Unions (1) 21 Nm

M6 (2) 11 Nm

M8 (3) 25 Nm

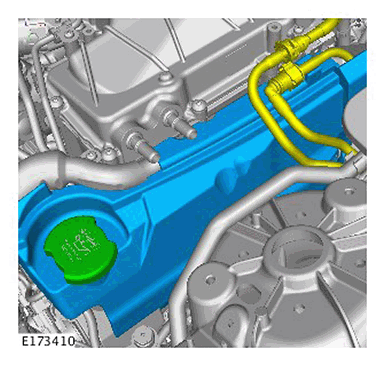

Torque: 48 Nm

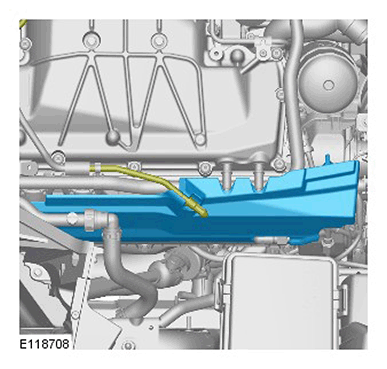

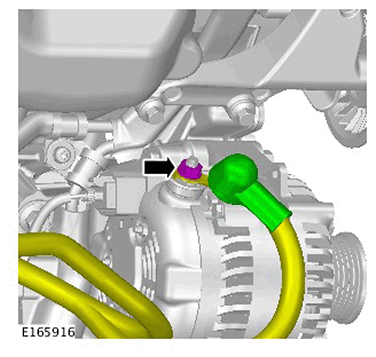

Torque: 12 Nm

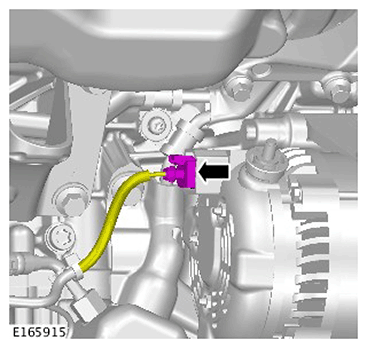

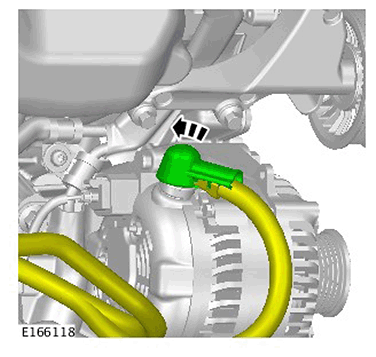

Torque: 25 Nm
Refer to: Air Deflector (501-02 Front End Body Panels, Removal and Installation).
WARNING: The wheel and tire assembly will be heavy.

CAUTION: Apply a small amount of grease to the hub and wheel mating surfaces before installation. Make sure the grease does not come into contact with the vehicles braking components and the wheel stud threads. Failure to follow these instructions may result in personal injury.

Install the RH front wheel and tire.

Torque: 140 Nm

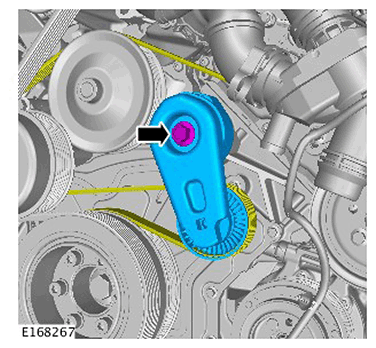

Install the FEAD belt.

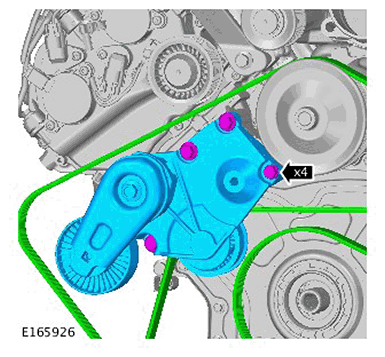

Torque: 25 Nm

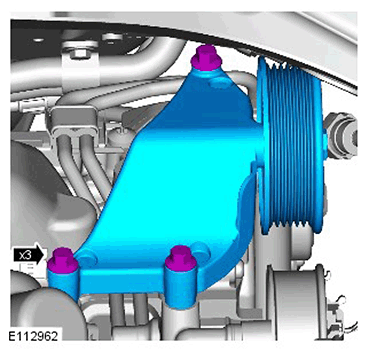

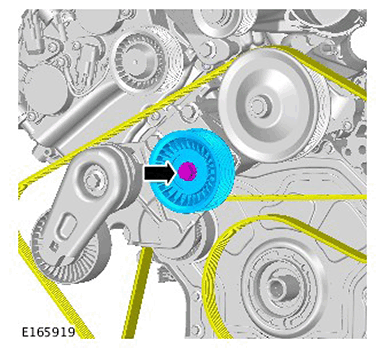

Torque: 48 Nm

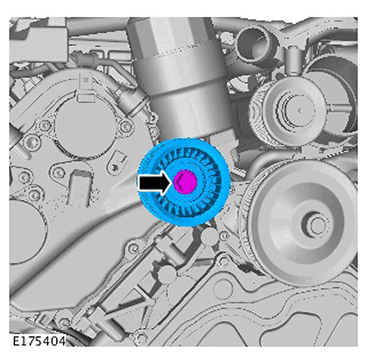

Torque: 48 Nm

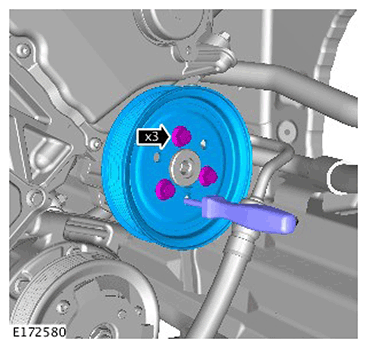

Refer to: Crankshaft Pulley (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

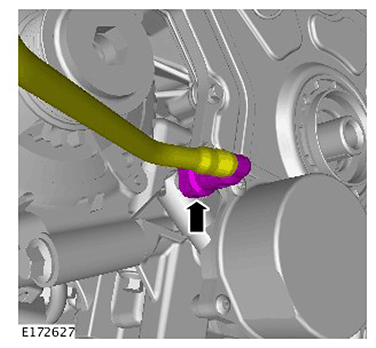

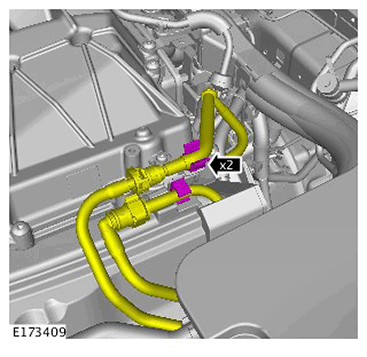

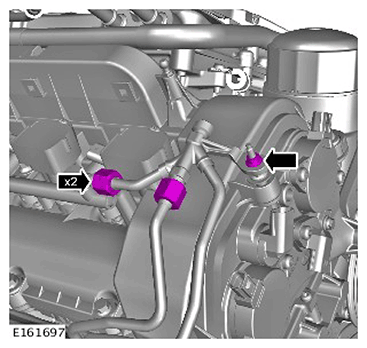

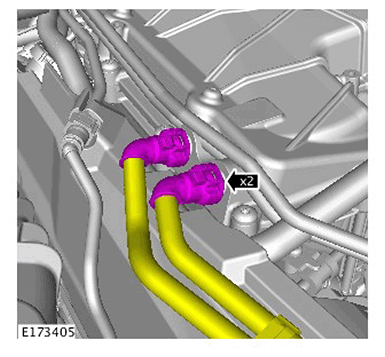

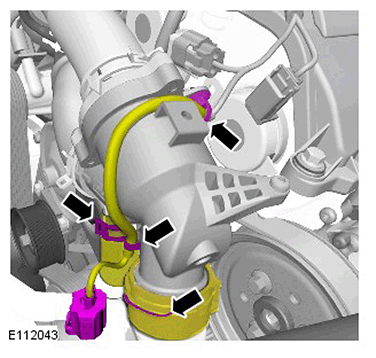

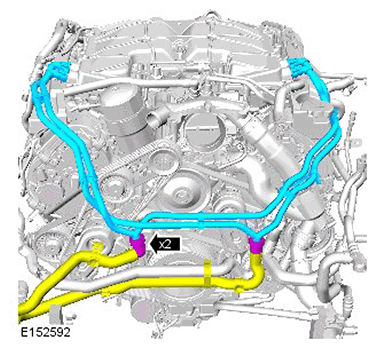

Torque:

Unions 21 Nm

M5 nut 6 Nm

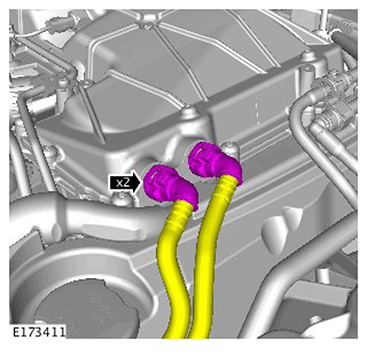

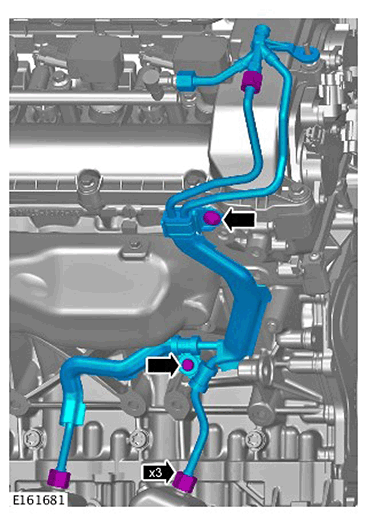

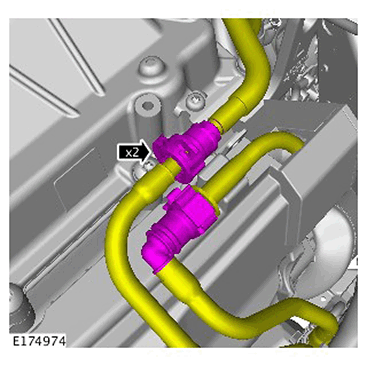

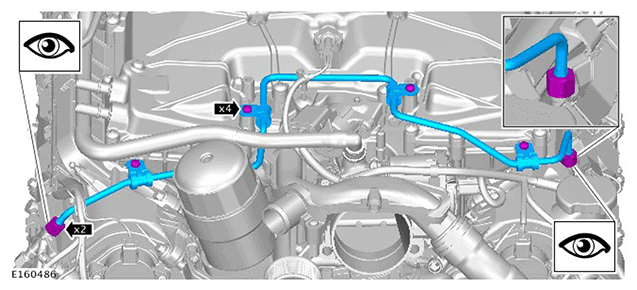

CAUTION: This fuel pipe can be re-used, inspect for signs of damage. Renew if necessary.

Torque:

Unions 21 Nm

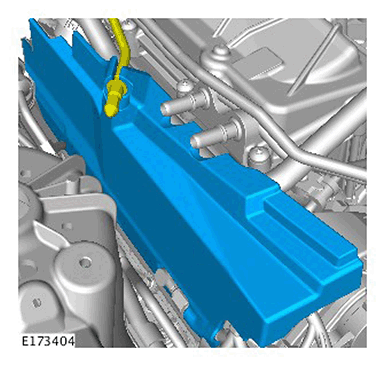

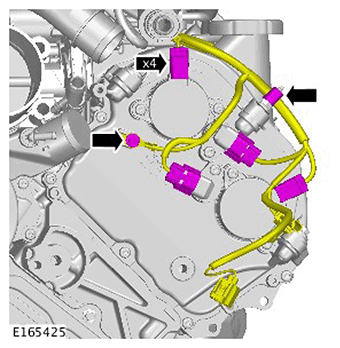

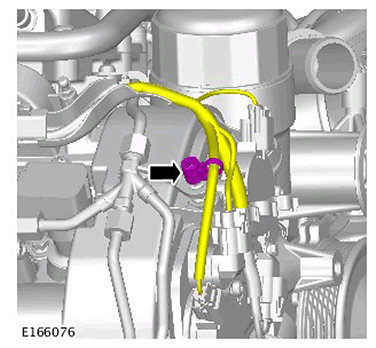

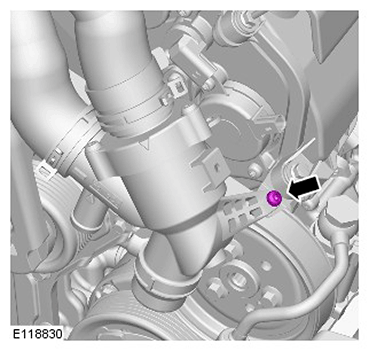

Bolts 12 Nm
NOTE: Remove and discard the blanking caps.

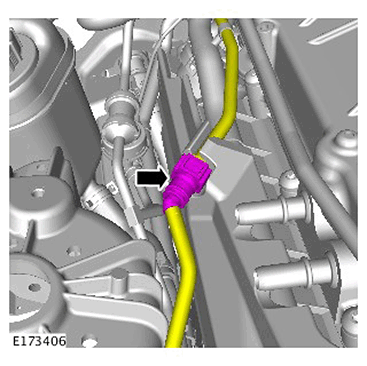

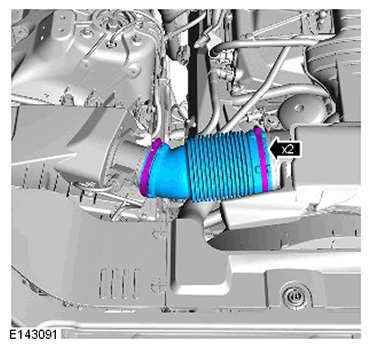

Refer to: Air Cleaner Outlet Pipe T-Connector (303-12A Intake Air Distribution and Filtering - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

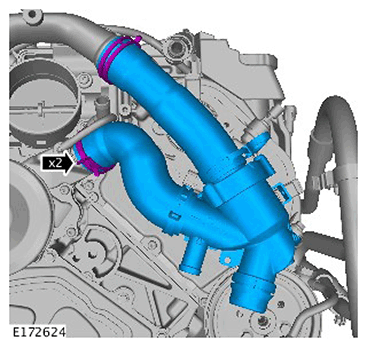

Refer to: Cooling System Partial Draining and Vacuum Filling (303-03A Engine Cooling - V8 5.0L Petrol/V8 S/C 5.0L Petrol, General Procedures).
Connect the battery ground cable.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
