Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Oil Pan Extension  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

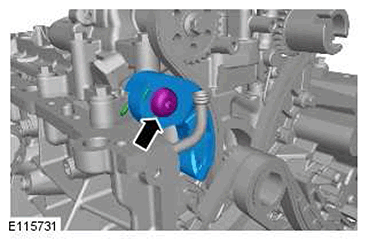

  4. NOTE: Tsubaki timing drive only.
    G11415006

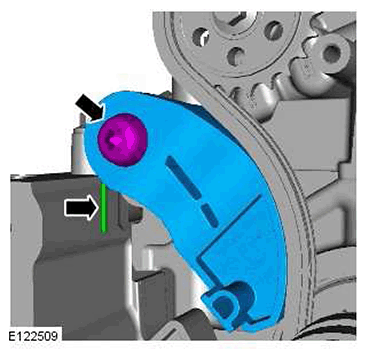

  5. NOTE: INA timing drive only.
    G11415007

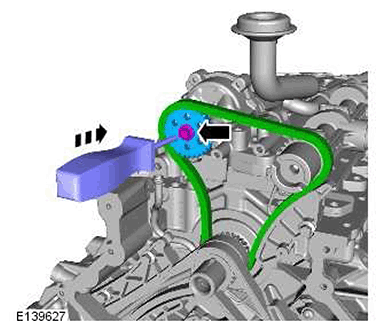

  6. G11415008

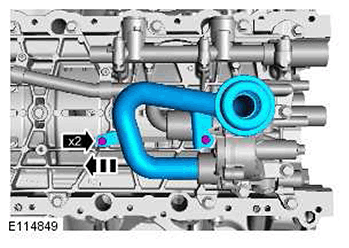

  7. CAUTION: Remove and discard the O-ring seal.
    G11415009

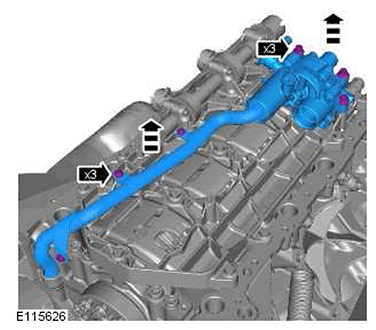

  8. CAUTION: Remove and discard the O-ring seals.
    G11415010

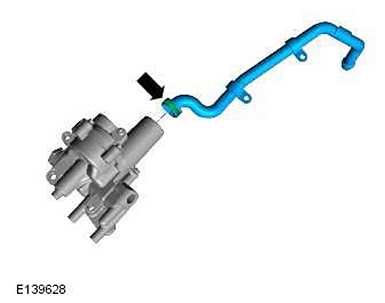

  9. CAUTION: Remove and discard the O-ring seal.
    G11415011
