Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

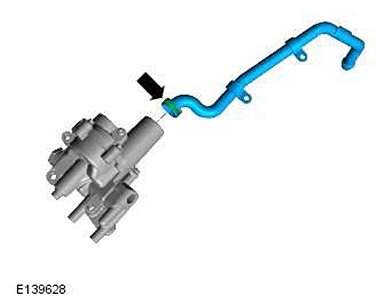

  1. NOTE: Lubricate and install the new O-ring seals.
    G11415012

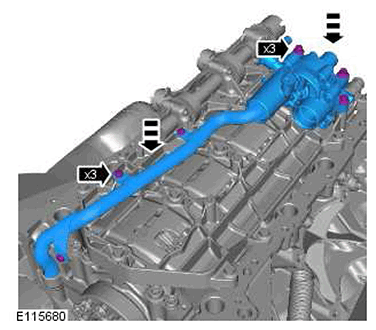

  2. NOTE: Lubricate and install the new O-ring seals.
    G11415013

    Torque:

    M8 25 Nm

    M6 12 Nm

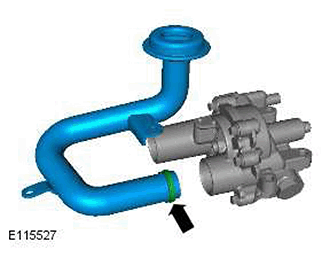

  3. NOTE: Lubricate and install the new O-ring seals.
    G11415014

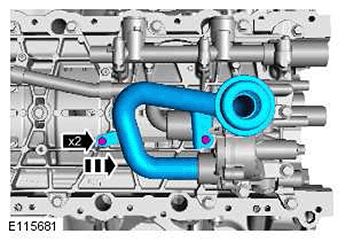

  4. G11415015

    Torque: 12 Nm

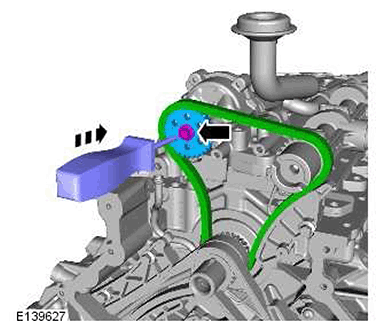

  5. G11415016

    Torque: 21 Nm

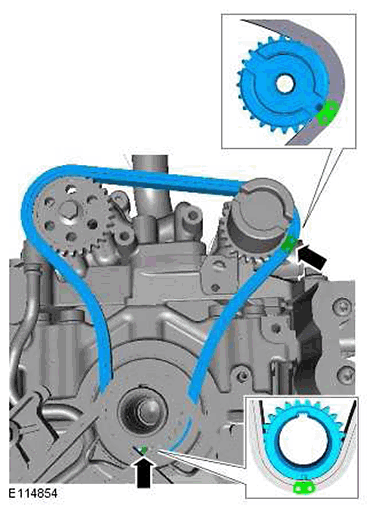

  6. NOTE: Tsubaki timing drive only.
    G11415017

    Install the lower timing chain making sure the coloured chain links align correctly with the fuel rail high-pressure fuel pumps camshaft and crankshaft sprocket markings.

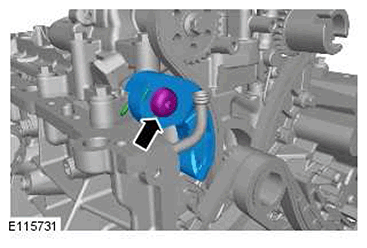

  7. CAUTION: Make sure that the tensioner spring is correctly located.
    NOTE: Tsubaki timing drive only.
    G11415018

    Torque: 21 Nm

  8. NOTE: INA timing drive only.

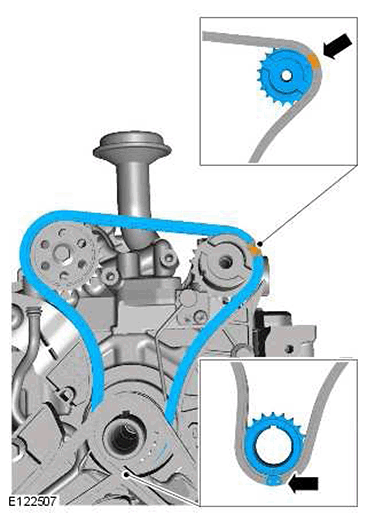

    G11415019

    Install the lower timing chain making sure the coloured chain links align correctly with the fuel rail high-pressure fuel pumps camshaft and crankshaft sprocket markings.

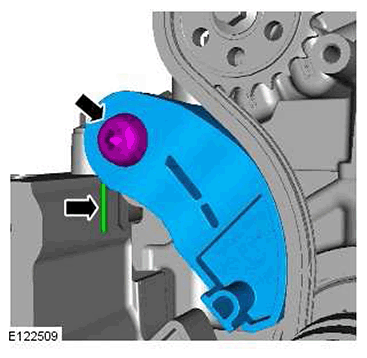

  9. CAUTION: Make sure that the tensioner spring is correctly located.
    NOTE: INA timing drive only.
    G11415020

    Torque: 21 Nm

  10. Refer to: Oil Pan Extension  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  11. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
