Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support t he vehicle.

  3. Refer to: Crankshaft Pulley  (303-01A Engine - V8 5.0L Petrol/V8 SC 5.0L Petrol, Removal and Installation).
  4. Refer to: Engine  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Installation).
  5. CAUTION:
    • The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    • Make sure that no components fall off during removal.
    NOTE:
    • Make sure that the crankshaft is not rotated.
    • Make sure the crankshaft and flexplate mating faces are clean before installation.

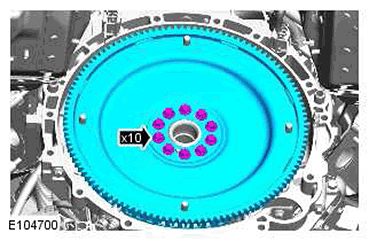

    G11414922

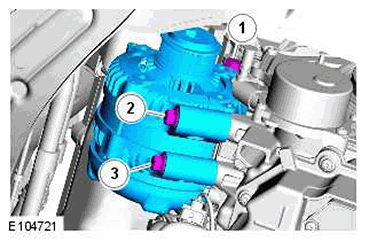

  6. G11414923

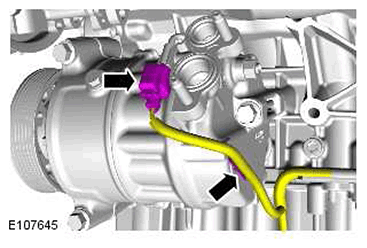

  7. G11414924

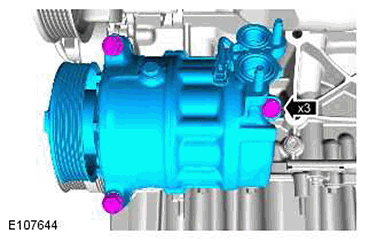

  8. G11414925

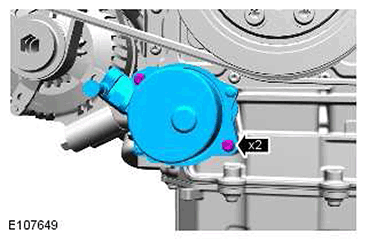

  9. G11414926

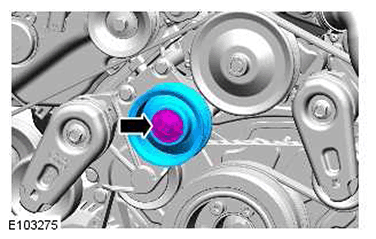

  10. G11414927

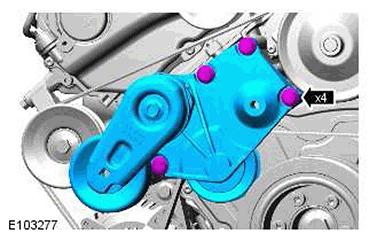

  11. G11414928

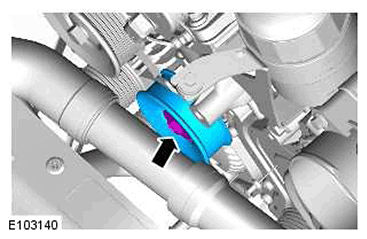

  12. G11414929

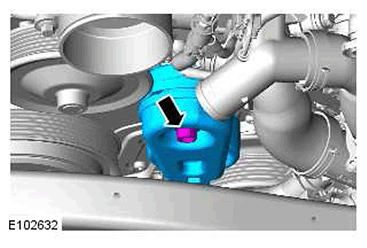

  13. G11414930

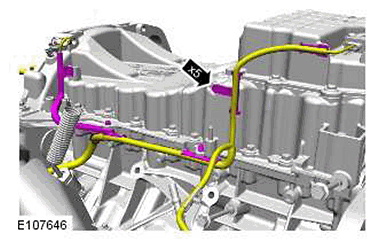

  14. G11414931
  15. NOTE: The high-pressure fuel pumps are removed from the illustration for clarity.

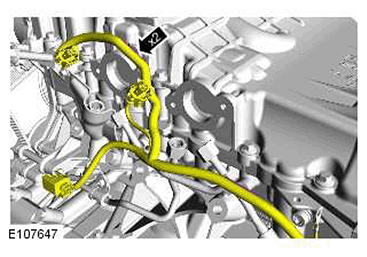

    G11414932
  16. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.

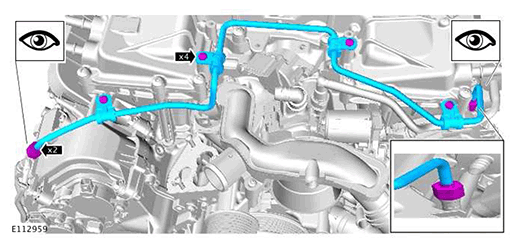

    G11414933

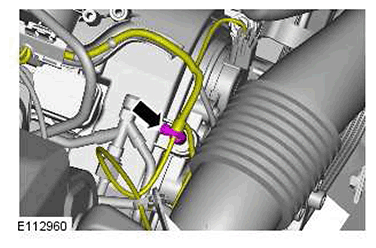

  17. G11414934
  18. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.

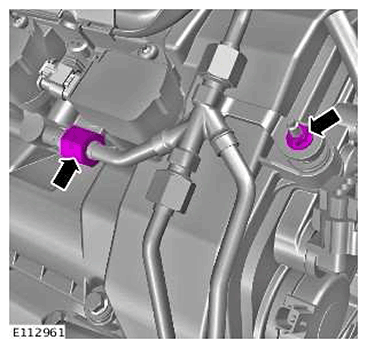

    G11414935

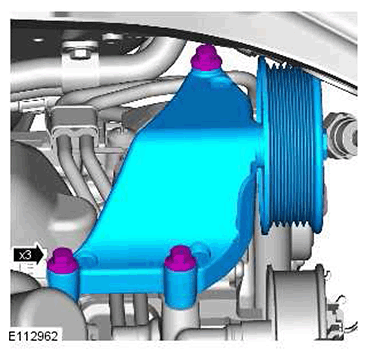

  19. G11414936

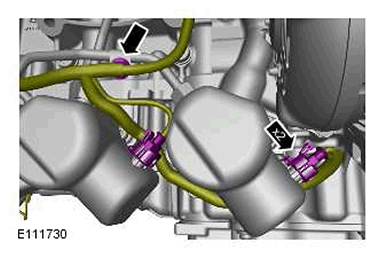

  20. G11414937
  21. G11414938
  22. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    • Discard the fuel pipes.

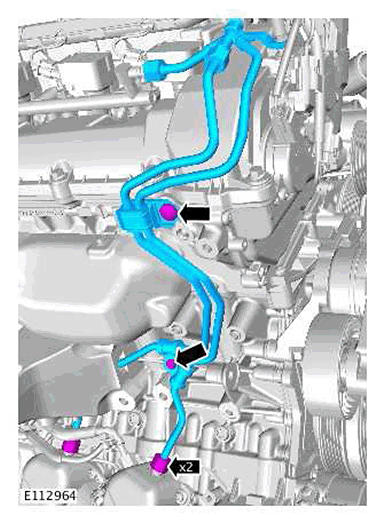

    G11414939
  23. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.

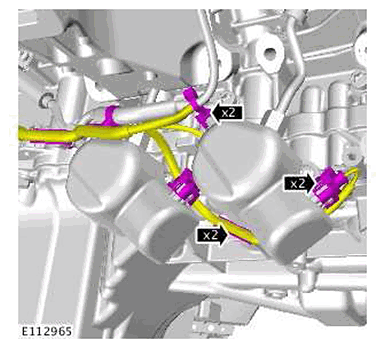

    G11414940

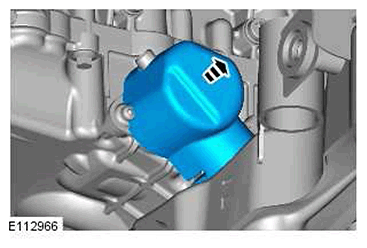

  24. G11414941
  25. CAUTION: Be prepared to collect escaping fluids.

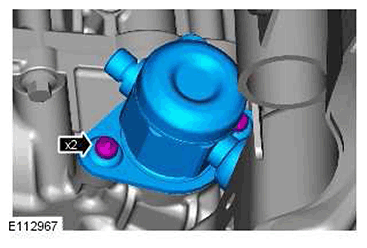

    G11414942
  26. CAUTION: Be prepared to collect escaping fluids.

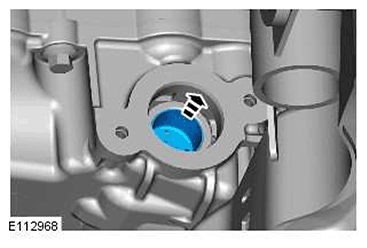

    G11414943

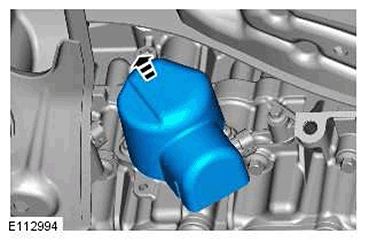

  27. G11414944
  28. CAUTION: Be prepared to collect escaping fluids.

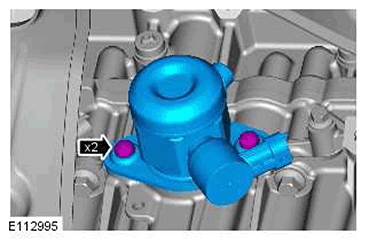

    G11414945
  29. CAUTION: Be prepared to collect escaping fluids.

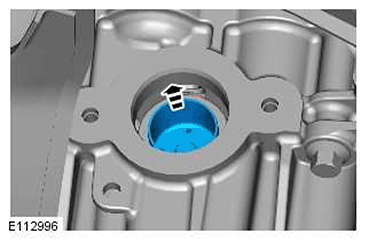

    G11414946
  30. CAUTION: Be prepared to collect escaping fluids.

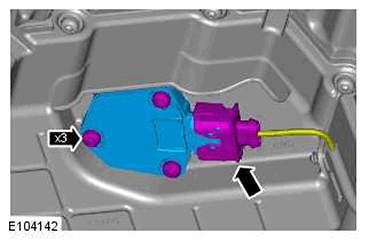

    G11414947

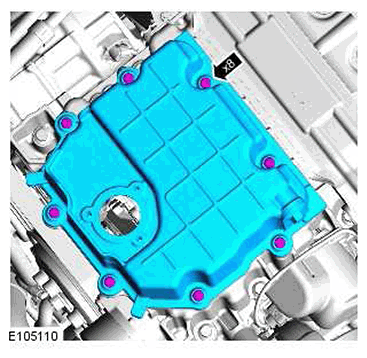

  31. G11414948

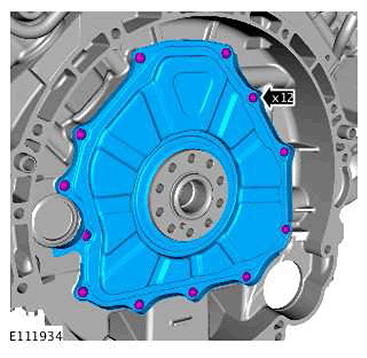

  32. G11414949
  33. NOTE: Clean the components general area prior to dismantling.

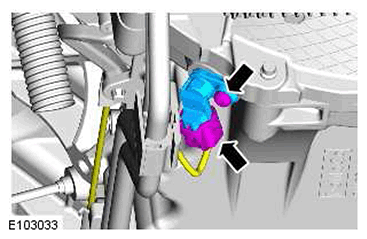

    G11414950
  34. NOTE: Discard component.

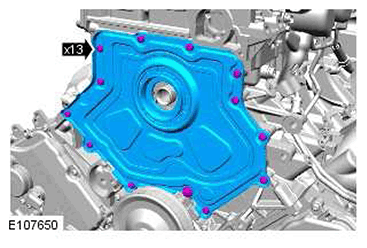

    G11414951

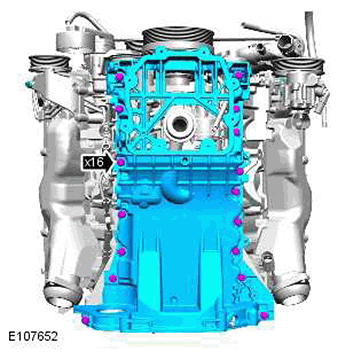

  35. G11414952
  36. NOTE: Make sure to use the aluminium lug provided on the oil pan extension to lever against.

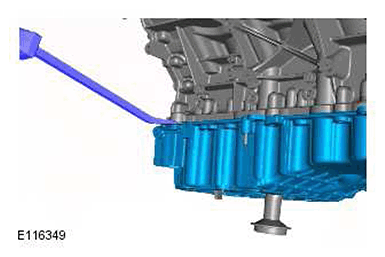

    G11414953
  37. NOTE: Do not disassemble further if the component is removed for access only.

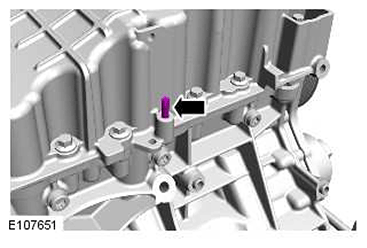

    G11414954
