Removal And Installation: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

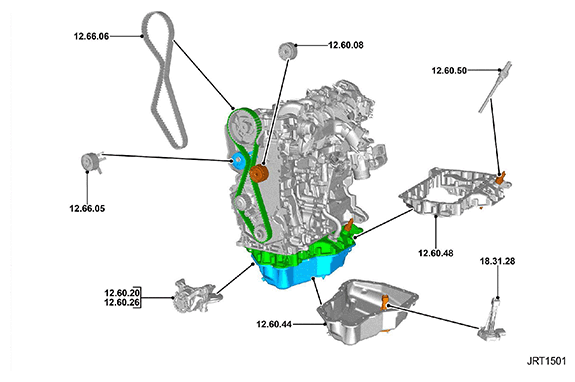

12.60.48 OIL PAN BODY ASSEMBLY - RENEW 2200 CC, TD4 5.3
G11414915

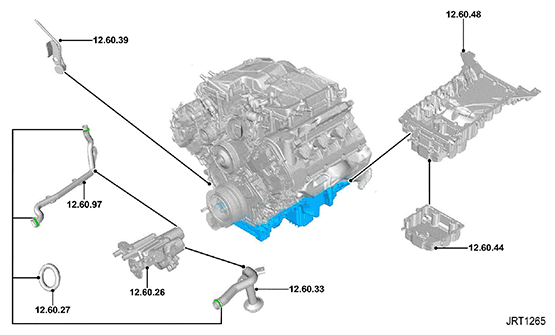

12.60.48 OIL PAN BODY ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED, 2WD 12.8
G11414916

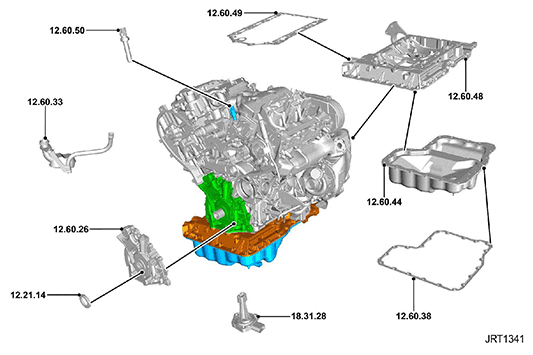

12.60.48 OIL PAN BODY ASSEMBLY - RENEW 3000 CC, TDV6 8.3
G11414917

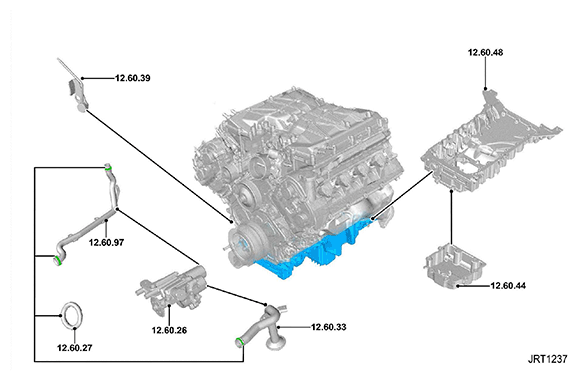

12.60.48 OIL PAN BODY ASSEMBLY - RENEW 5000 CC, AJ V8, SUPERCHARGED 13.4
G11414918
