Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

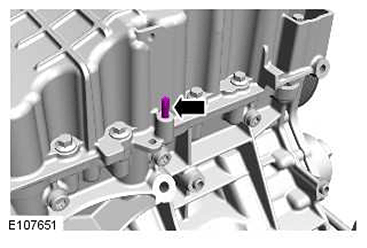

  1. G11414955

    Torque: 8 Nm

  2. CAUTION:
    • Make sure that the mating faces are clean and free of foreign material.
    • Use only a plastic scraper when removing the sealing material.

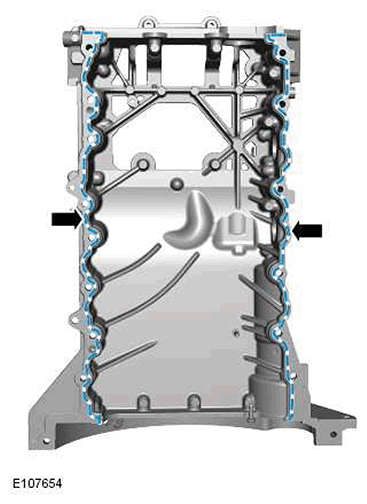

    G11414956
    • Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.

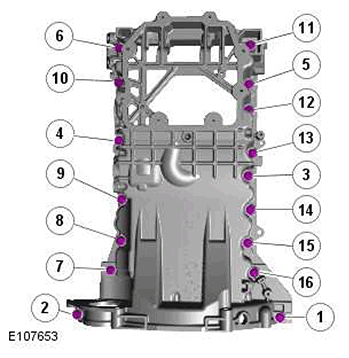

  3. NOTE: Tighten the bolts in the indicated sequence.
    G11414957

    Torque: 25 Nm

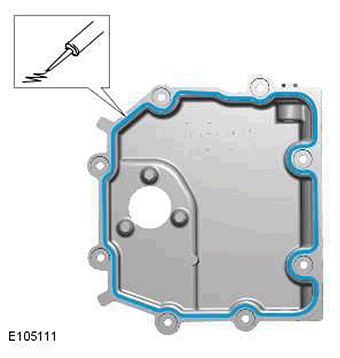

  4. CAUTION:
    • Make sure that the mating faces are clean and free of foreign material.
    • Use only a plastic scraper when removing the sealing material.
    G11414958
    • Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.

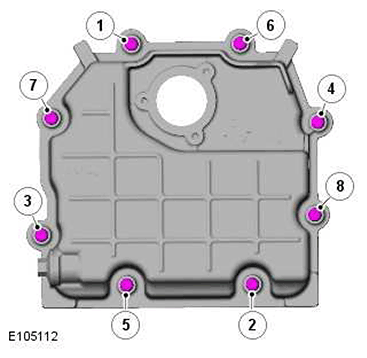

  5. NOTE: Tighten the bolts in the indicated sequence.
    G11414959

    Torque: 12 Nm

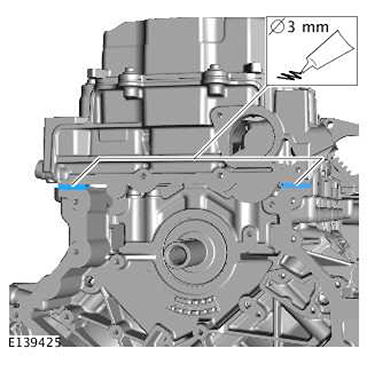

  6. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G11414960

    Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.

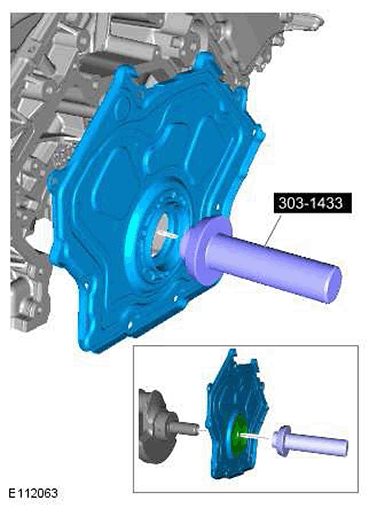

  7. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    NOTE: Install new lower timing cover.
    G11414961

    Install the bolts, but do not tighten fully at this stage.

    Special Tool(s):  303-1433

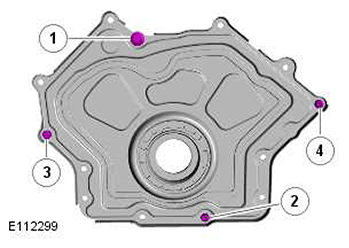

  8. NOTE: Tighten the bolts in the indicated sequence.
    G11414962

    Torque:

    M6 12 Nm

    M8 20 Nm

  9. Remove the special tool.

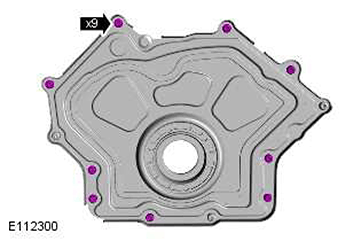

  10. G11414963

    Torque: 12 Nm

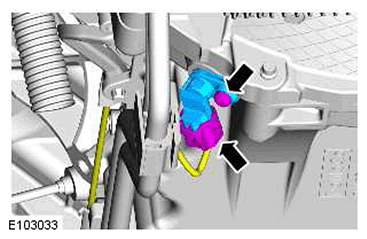

  11. G11414964

    Torque: 10 Nm

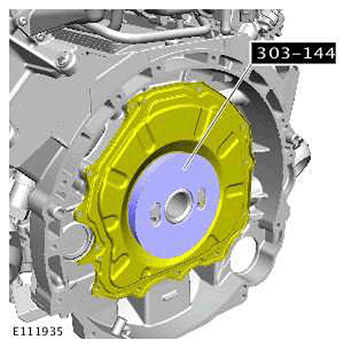

  12. G11414965

    Special Tool(s):  303-1442, 303-1443

  13. Remove the special tools.

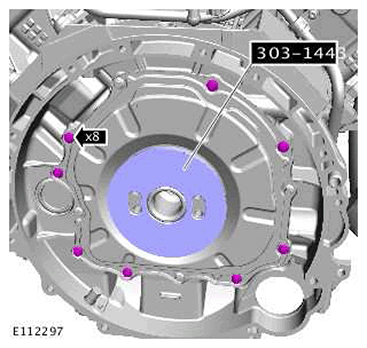

  14. NOTE: Tighten the bolts in the indicated sequence.
    G11414966

    Torque: 11 Nm

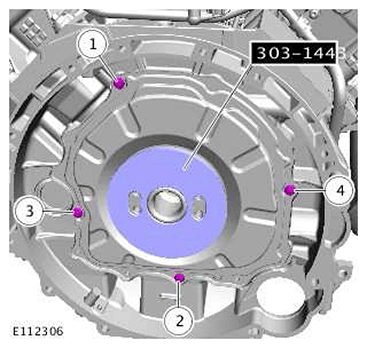

  15. G11414967

    Torque: 11 Nm

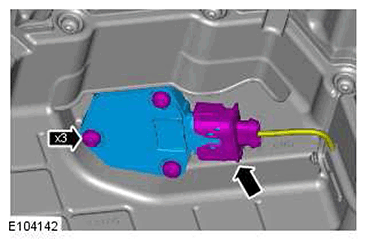

  16. G11414968
    • Torque: 11 Nm

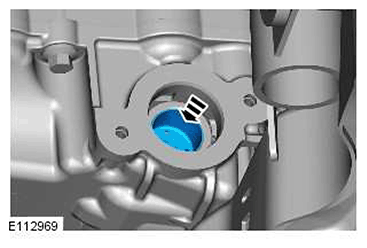

  17. NOTE: Lubricate the fuel rail high-pressure fuel pump bucket with clean engine oil.
    G11414969
  18. CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.
    NOTE: Lubricate the fuel rail high-pressure fuel pump O-ring seal with clean engine oil.
    G11414970
    • Torque: 11 Nm

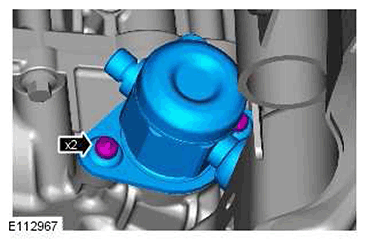

  19. G11414971

    Loosen the Torx screws half a turn each.

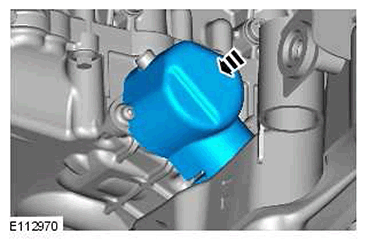

  20. G11414972

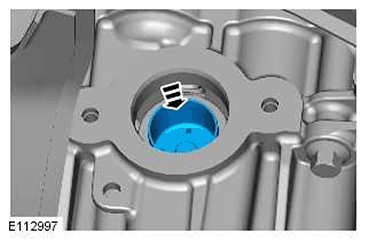

  21. NOTE: Lubricate the fuel rail high-pressure fuel pump bucket with clean engine oil.
    G11414973
  22. CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.
    NOTE: Lubricate the fuel rail high-pressure fuel pump O-ring seal with clean engine oil.
    G11414974
    • Torque: 11 Nm

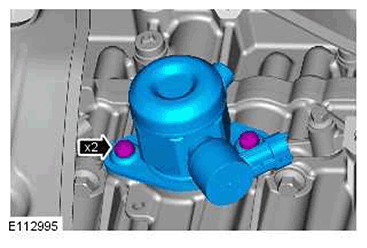

  23. G11414975

    Loosen the Torx screws half a turn each.

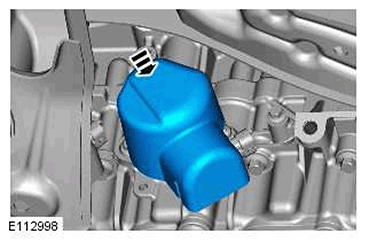

  24. G11414976
  25. CAUTION:
    • Install new high-pressure fuel supply lines.
    • Lubricate only the union threads with clean engine oil.
    NOTE:
    • Remove and discard the blanking caps.
    • Install the bolt and unions fully finger tight before final tightening.

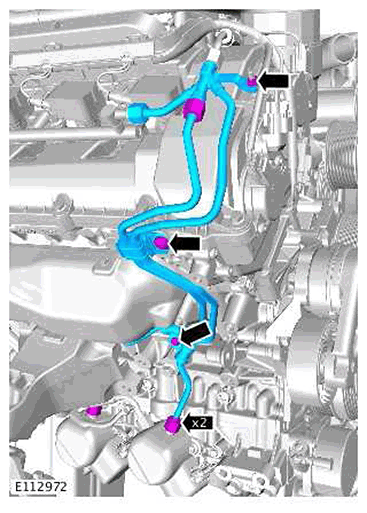

    G11414977
  26. CAUTION: Care must be taken when positioning the fuel rail high-pressure fuel pump cover to one side.
    NOTE: Fuel rail high-pressure fuel pump cover shown removed for clarity.
    G11414978
    • Torque: 11 Nm
  27. CAUTION: Care must be taken when positioning the fuel rail high-pressure fuel pump cover to one side.
    NOTE: Fuel rail high-pressure fuel pump cover shown removed for clarity.
    G11414979
    • Torque: 11 Nm
  28. NOTE:
    • Do not tighten at this stage.
    • Remove and discard the blanking caps.

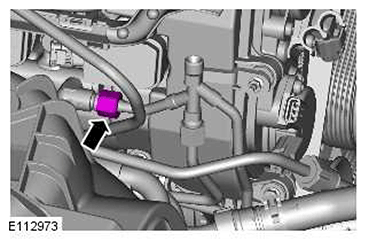

    G11414980

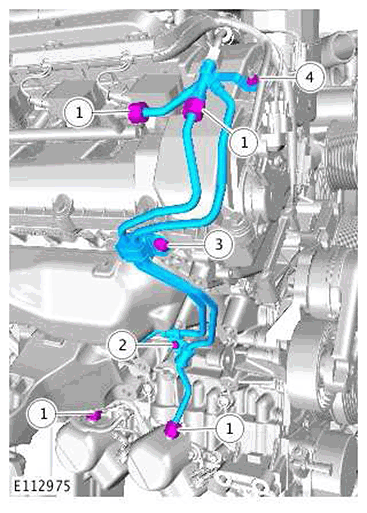

  29. G11414981
    • Torque:

      Unions (1) 21 Nm

      M6 (2) 11 Nm

      M8 (3) 25 Nm

      M5 nut (4) 6 Nm

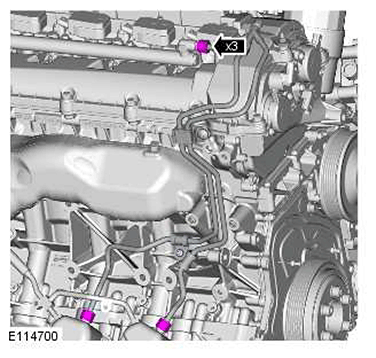

  30. G11414982
    • Torque:

      Unions 21 Nm

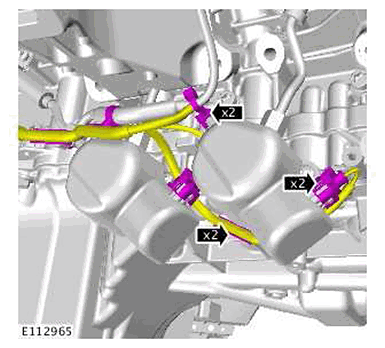

  31. NOTE:
    • Install the bolt and unions finger tight before final tightening.
    • Remove and discard the blanking caps.
    G11414983
    • Torque:

      Unions 21 Nm

      M6 11 Nm

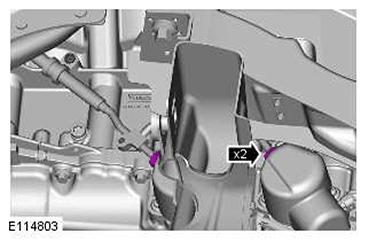

  32. G11414984
    • Torque:

      Unions 21 Nm

  33. G11414985

    Torque:

    M10 29 Nm

    M6 11 Nm

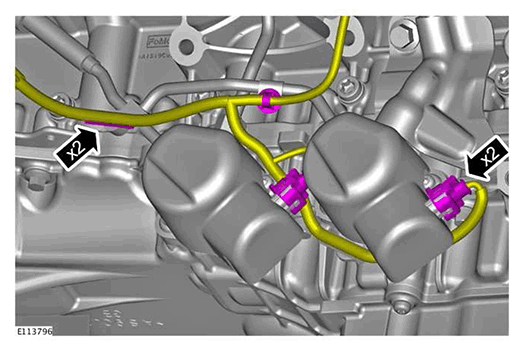

  34. G11414986

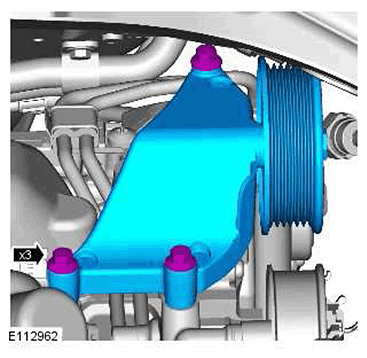

  35. G11414987

    Torque: 25 Nm

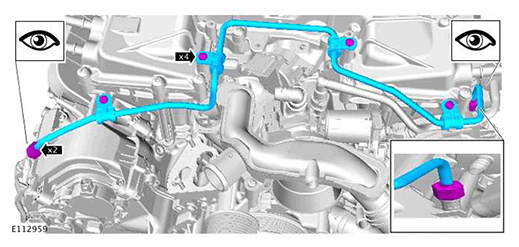

  36. G11414988

    Torque:

    Unions 21 Nm

    M6 11 Nm

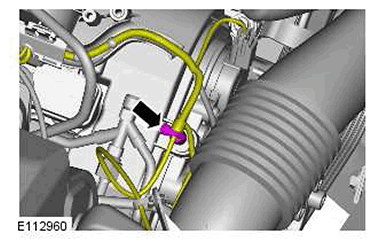

  37. G11414989

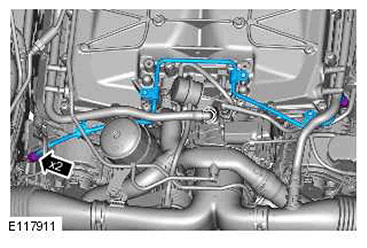

  38. G11414990

    Torque:

    Unions 21 Nm

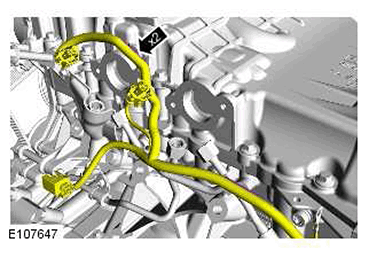

  39. NOTE: The high-pressure fuel pumps are removed from the illustration for clarity.
    G11414991

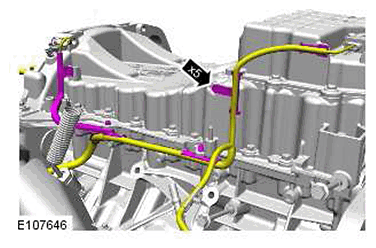

  40. G11414992

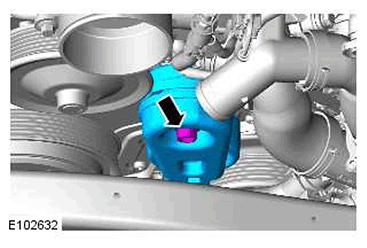

  41. G11414993

    Torque: 40 Nm

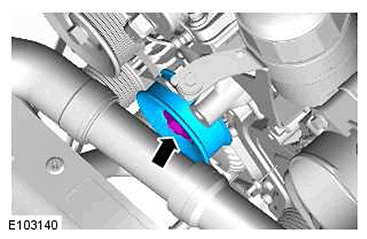

  42. G11414994

    Torque: 25 Nm

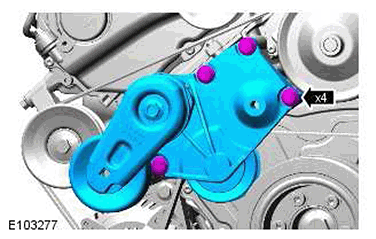

  43. G11414995

    Torque: 25 Nm

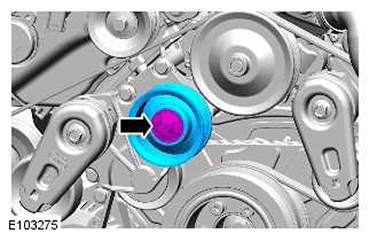

  44. G11414996

    Torque: 55 Nm

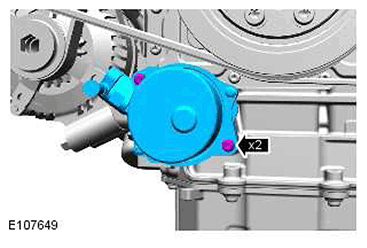

  45. G11414997

    Torque: 12 Nm

  46. CAUTION: Install all the bolts finger tight before final tightening.

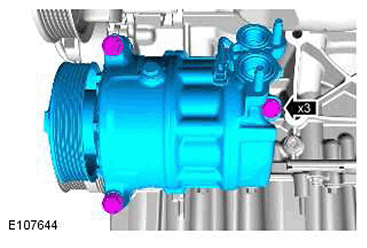

    G11414998

    Torque: 25 Nm

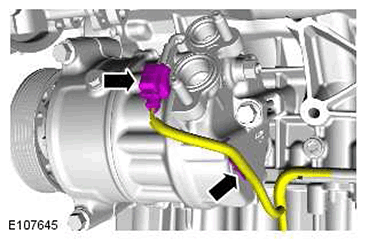

  47. G11414999

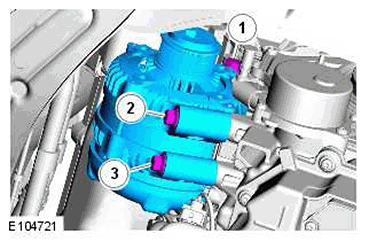

  48. CAUTION: Install all the bolts finger tight before final tightening.
    NOTE: Tighten the bolts in the indicated sequence.
    G11415000

    Torque: 48 Nm

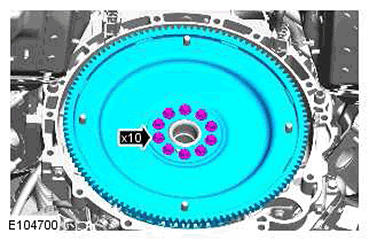

  49. CAUTION:
    • Install all the bolts finger tight before final tightening.
    • The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    • Install the bolts in the noted position.
    NOTE:
    • Make sure that the crankshaft is not rotated.
    • Make sure the crankshaft and flexplate mating faces are clean before installation.
    • Tighten the retaining bolts working diagonally.
    G11415001

    Torque:

    Stage 1: 45 Nm

    Stage 2: 90°

  50. Refer to: Engine  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Installation).

  51. Refer to: Crankshaft Pulley  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  52. Lower the vehicle.
  53. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
