Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION:
    • Use only a plastic scraper when removing the sealing material.
    • Use lint free cloth.
    • Make sure that the mating faces are clean and free of corrosion and foreign material.
    G11414913

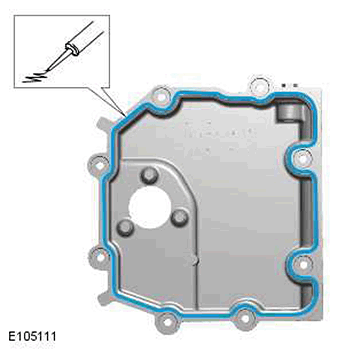

    • Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.
    • Apply a bead of sealant, 2.5 mm diameter, to the area indicated.

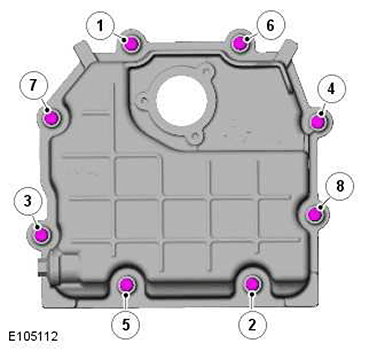

  2. NOTE: Tighten the bolts in the sequence shown.
    G11414914

    Torque: 12 Nm

  3. Refer to: Engine Oil Level Sensor (303-14A Electronic Engine Controls - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
