Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Cooling System Partial Draining and Vacuum Filling (303-03C Engine Cooling - V6 S/C 3.0L Petrol, General Procedures).

  4. Refer to: Supercharger (303-12A Intake Air Distribution and Filtering - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

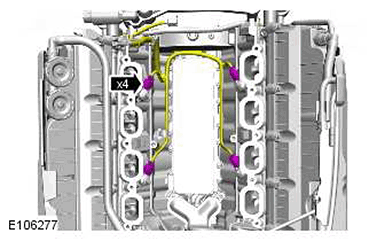

  5. G11414891

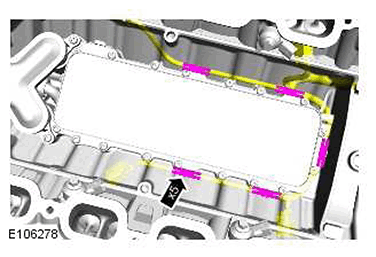

  6. G11414892
  7. CAUTION:
    • Be prepared to collect escaping oil.
    • Be prepared to collect escaping coolant.

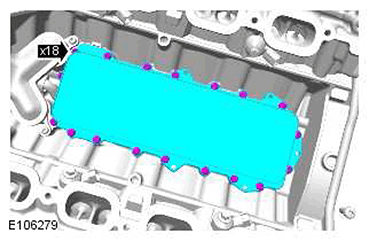

    G11414893

    Torque: 13 Nm

  8. CAUTION: Make sure that these components are installed to the noted removal position.
    NOTE: Install a new gasket.

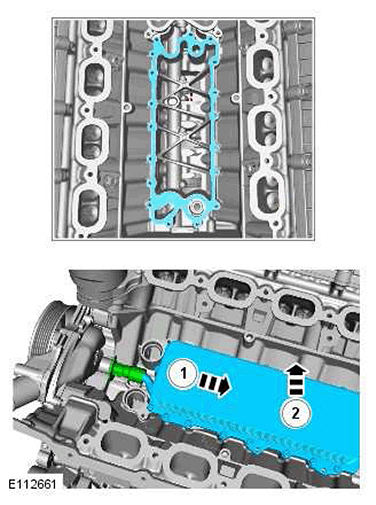

    G11414894
  9. CAUTION:
    • Make sure that these components are installed to the noted removal position.
    • Install new o-ring seals

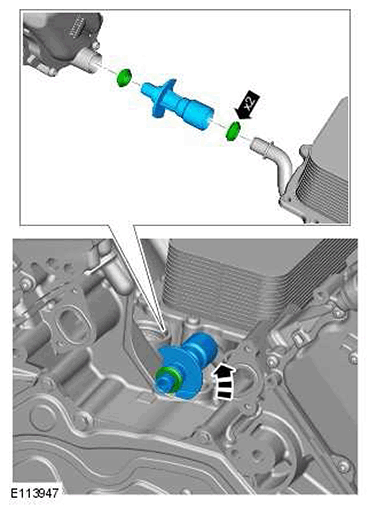

    G11414895
