Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION:
    • Install all the bolts finger tight before final tightening.
    • Make sure that the area around the component is clean and free of foreign material.
    • Install the new seals.

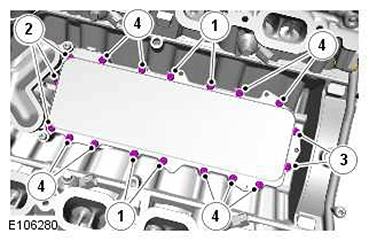

    NOTE: Tighten the bolts in the indicated sequence.
    G11414896

To install, reverse the removal procedure.
