Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Crankshaft Pulley  (303-01A Engine - V8 5.0L Petrol/V8S/C 5.0L Petrol, Removal and Installation).

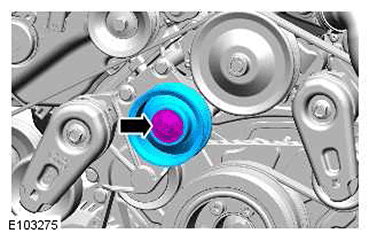

  4. G11415143

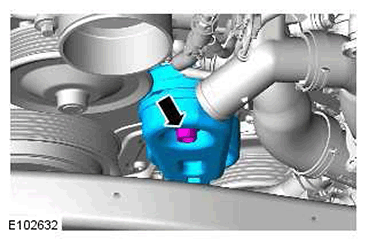

  5. G11415144

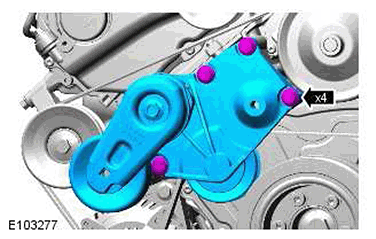

  6. G11415145
  7. Refer to: Brake Vacuum Pump - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (206-07 Power Brake Actuation, Removal and Installation).

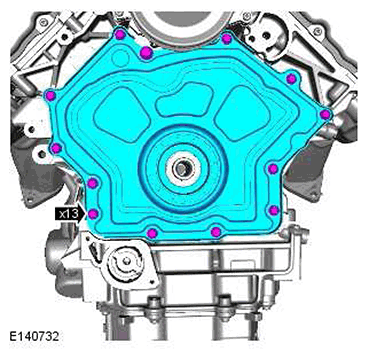

  8. G11415146
