Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

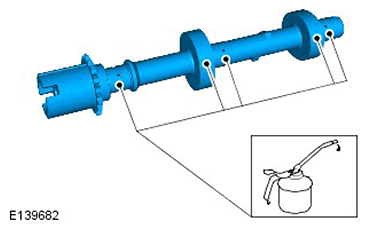

  1. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G11415124

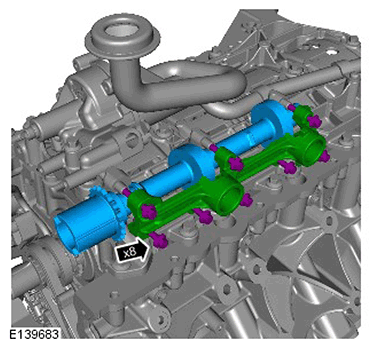

  2. CAUTION: Take extra care not to damage the mating faces.
    G11415125

    Torque: 12 Nm

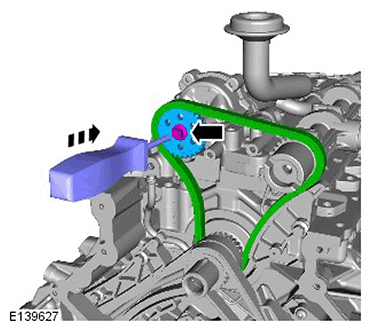

  3. G11415126

    Torque: 21 Nm

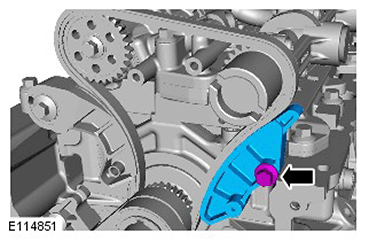

  4. G11415127

    Torque: 12 Nm

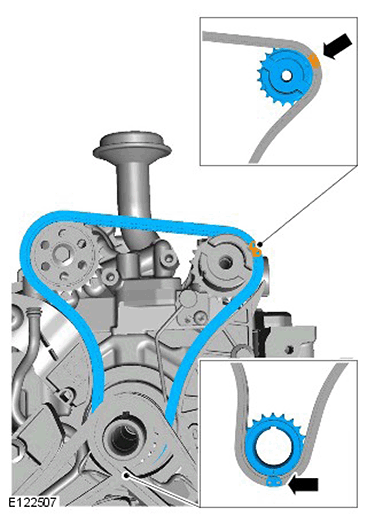

  5. G11415128

    Install the lower timing chain making sure the coloured chain links align correctly with the fuel rail high-pressure fuel pumps camshaft and crankshaft sprocket markings.

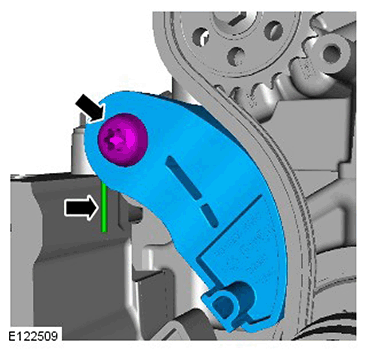

  6. CAUTION: Make sure that the tensioner spring is correctly located.
    G11415129

    Torque: 21 Nm

  7. Refer to: Oil Pan Extension  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  8. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
