Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
CAUTION: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Transmission - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (307-01A Automatic Transmission/Transaxle - GTDi 2.0L Petrol/TD4 2.2L Diesel/TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol RWD, Removal).

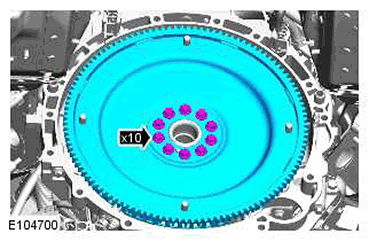

CAUTION:
- Install all the bolts finger tight before final tightening.
- The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
- Make sure that no components fall off during removal.
- Install the bolts in the noted position.
NOTE:
- Make sure the crankshaft and flexplate mating faces are clean before installation.
- Make sure that the crankshaft is not rotated.
- Tighten the retaining bolts working diagonally.

Torque:

Stage 1: 45 Nm

Stage 2: 90°
