Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
NOTE: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: Catalytic Converter RH (309-00A Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

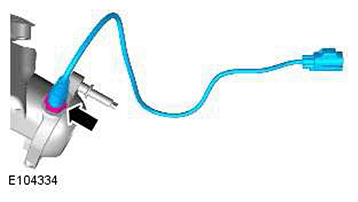

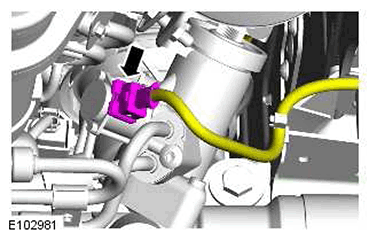

Right-hand drive vehicles

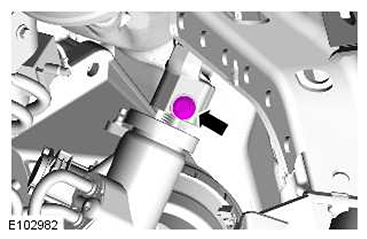

CAUTION: Discard the bolt.

Torque: 35 Nm

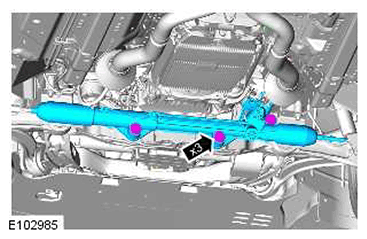

Torque: 100 Nm

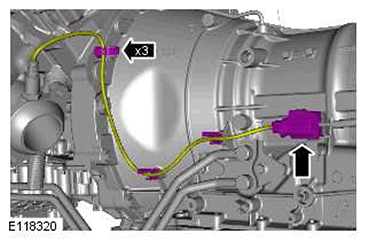

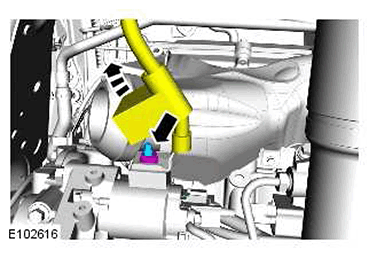

All vehicles

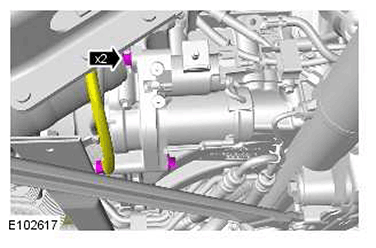

Torque: 12 Nm

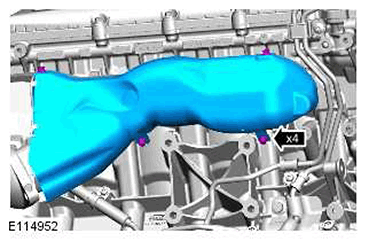

Torque: 48 Nm

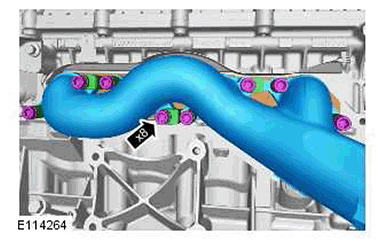

CAUTION:
- Discard the bolts.
- LH illustration shown, RH is similar.
NOTE:
- Discard the gasket.
- Make sure that the position of the spacers is noted before removal of the manifold.
NOTE: Do not disassemble further if the component is removed for access only.
