Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

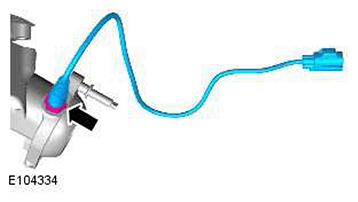

Torque: 45 Nm
CAUTION: LH illustration shown, RH is similar.

NOTE: Install a new gasket.

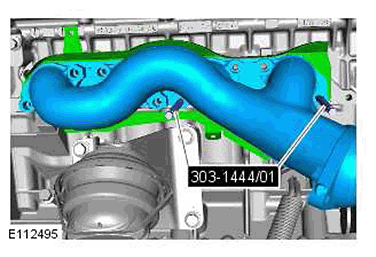

Install the special tool.

Special Tool(s): 303-1444-01

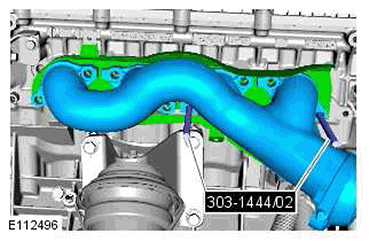

CAUTION: LH illustration shown, RH is similar.

NOTE: If a new cylinder head is installed use the special tools in the illustration.

Install the special tool.

Special Tool(s): 303-1444-02

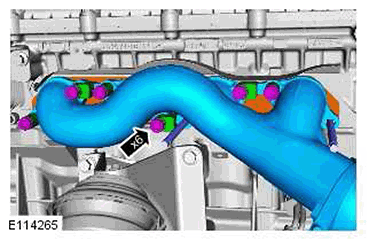

CAUTION:
- Make sure that new bolts are installed.
- LH illustration shown, RH is similar.
NOTE: Install the spacers in the noted position.

Torque: 10 Nm

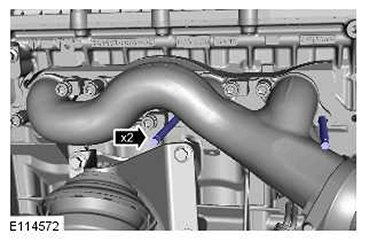

CAUTION: LH illustration shown, RH is similar.

Remove the special tool.

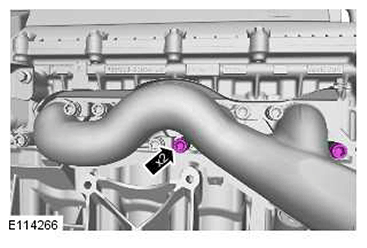

CAUTION:
- Make sure that new bolts are installed.
- LH illustration shown, RH is similar.
NOTE: Install the spacers in the noted position.

Torque: 10 Nm
CAUTION: LH illustration shown, RH is similar.

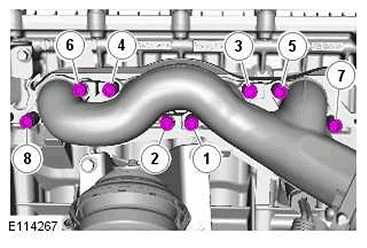

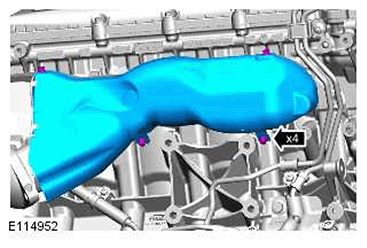

Torque: 18 Nm
Torque: 12 Nm

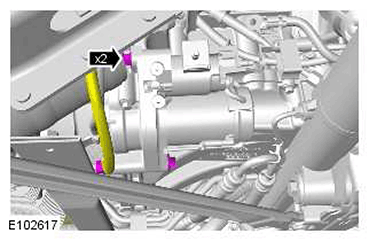

Torque: 48 Nm

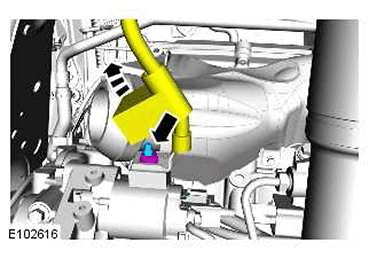

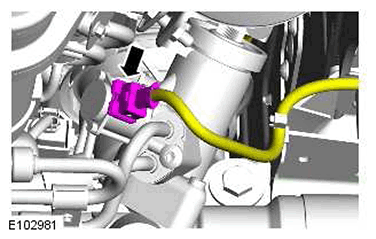

Right-h and drive vehicles

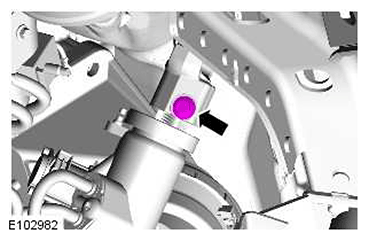

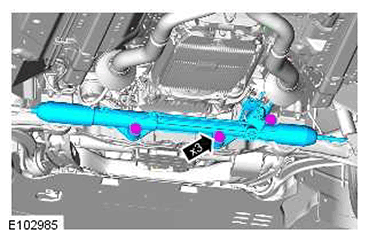

CAUTION: Discard the bolt.

Torque: 35 Nm
Torque: 100 Nm

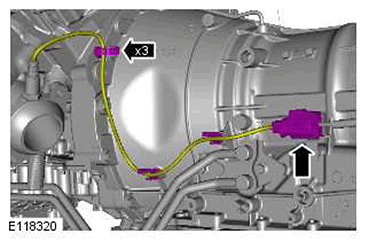

All vehicles
Refer to: Catalytic Converter RH (309-00A Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
