Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: Power Steering Pump - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (211-02 Power Steering, Removal and Installation).
  4. Refer to: Catalytic Converter LH (309-00A Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

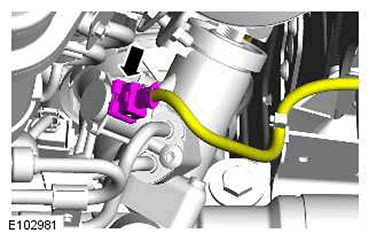

  5. G11414827
  6. CAUTION: Discard the bolt.
    NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

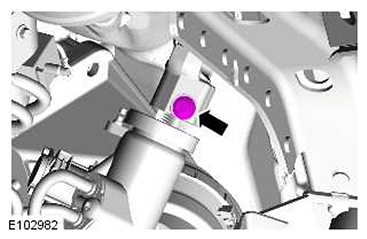

    G11414828

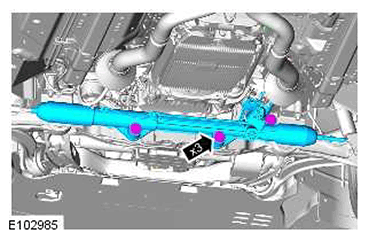

  7. G11414829

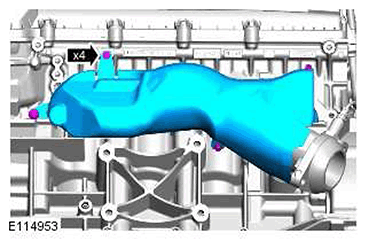

  8. G11414830

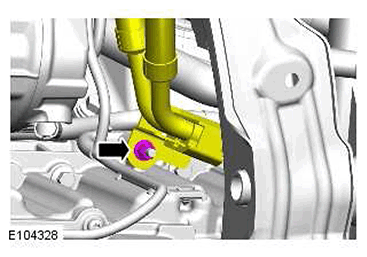

  9. G11414831

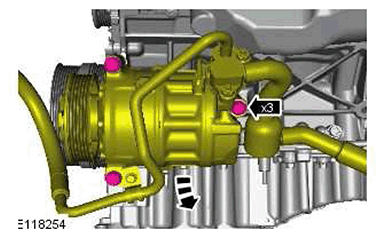

  10. G11414832

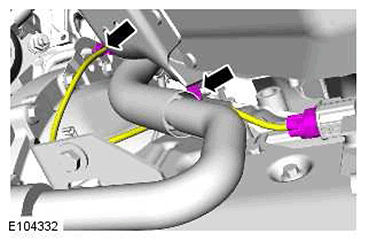

  11. G11414833

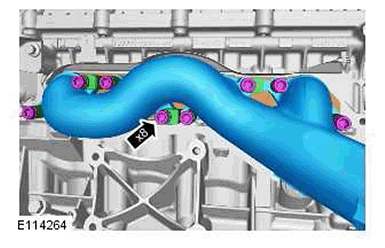

  12. CAUTION: Discard the bolts.
    NOTE:
    • Discard the gasket.
    • Make sure that the position of the spacers is noted before removal of the manifold.
    G11414834
  13. NOTE: Do not disassemble further if the component is removed for access only.

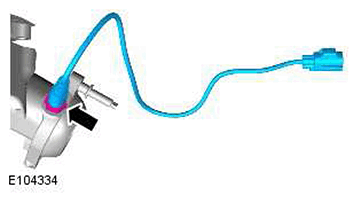

    G11414835
