Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION:
    • Make sure that the mating faces are clean and free of foreign material.
    • Make sure the anti-seize compound does not contact the catalyst monitor sensor tip.
    • If accidentally dropped or knocked install a new sensor.
    • Make sure the catalyst monitor sensor wiring harness is not twisted more than 180 degrees and is not in contact with either the exhaust or driveshaft.
    NOTE: If the original sensor is to be installed, apply lubricant meeting specification ESE-M12A4-A to the thread of the sensor.

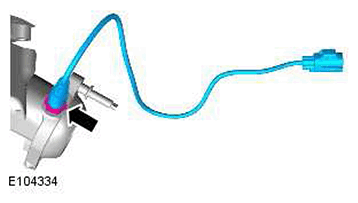

    G11414836

    Torque: 45 Nm

  2. NOTE: Install a new gasket.

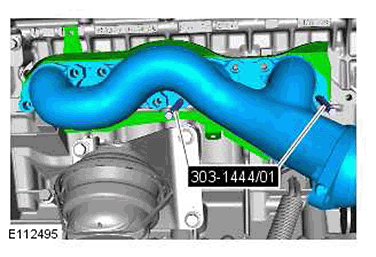

    G11414837

    Special Tool(s):  303-1444-01

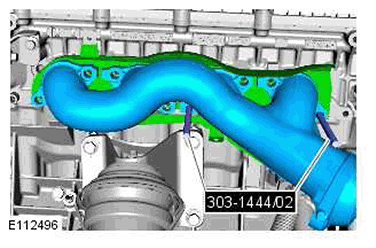

  3. NOTE: If a new cylinder head is installed use the special tools in the illustration.
    G11414838

    Special Tool(s):  303-1444-02

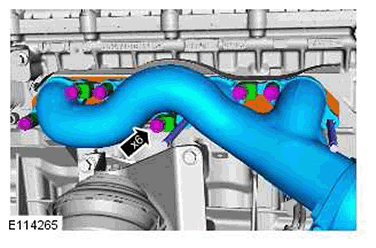

  4. CAUTION: Make sure that new bolts are installed.
    NOTE: Install the spacers in the noted position.
    G11414839

    Torque: 10 Nm

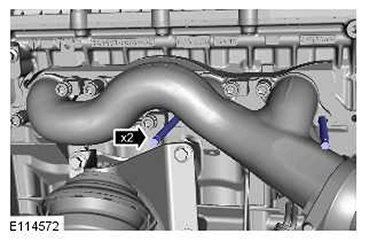

  5. G11414840

    Remove the special tool.

  6. CAUTION: Make sure that new bolts are installed.
    NOTE: Install the spacers in the noted position.

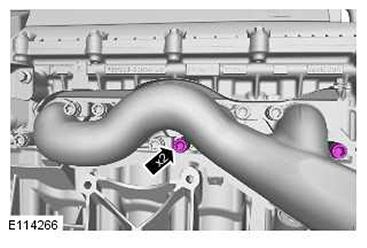

    G11414841

    Torque: 10 Nm

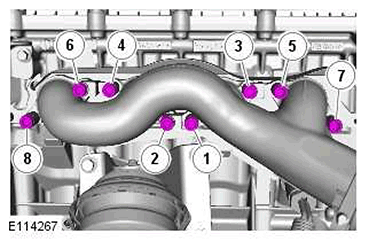

  7. G11414842

    Torque: 18 Nm

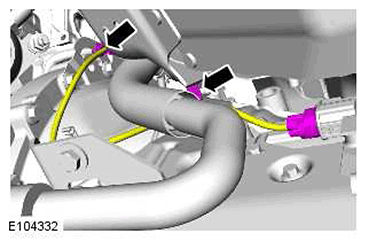

  8. G11414843

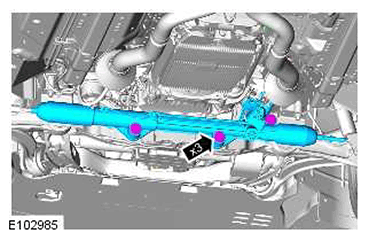

  9. G11414844

    Torque: 100 Nm

  10. WARNING: Make sure that a new bolt is installed.
    NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

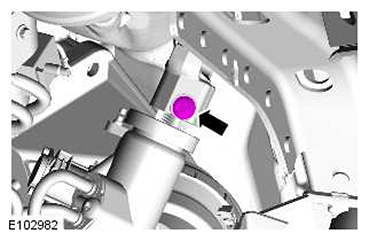

    G11414845

    Torque: 35 Nm

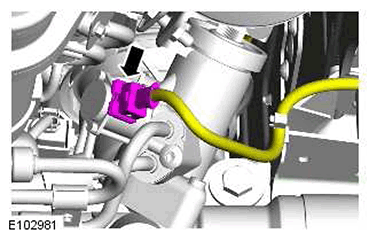

  11. G11414846

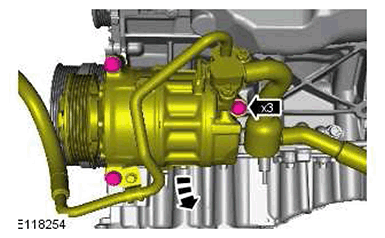

  12. G11414847

    Torque: 25 Nm

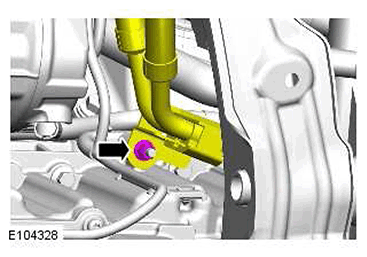

  13. G11414848

    Torque: 10 Nm

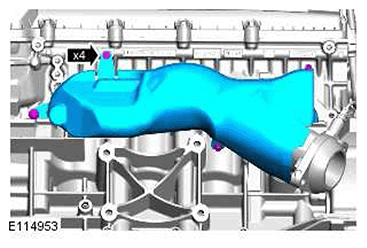

  14. G11414849

    Torque: 3 Nm

  15. Refer to: Catalytic Converter LH (309-00A Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  16. Refer to: Power Steering Pump - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (211-02 Power Steering, Removal and Installation).
  17. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
