General Procedures: Filling

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Install new O-ring seals.

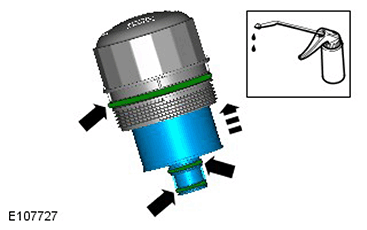

    G11414567

    Lubricate the oil filter element O-ring seal with clean engine oil.

  2. CAUTION: Tighten the component finger tight first.

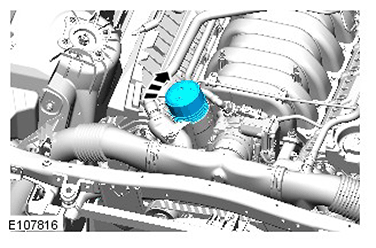

    G11414568
    • Torque: 25 Nm
  3. CAUTION: Make sure that the vehicle is left for 5 minutes from filling with oil and that the engine oil level is reading at least minimum (by following Steps 7-11), before starting the engine.
    • Fill the engine with oil - for filling values on vehicles without supercharger:

      Refer to: Specifications  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Specifications).

    • Fill the engine with oil - for filling values on vehicles with supercharger:

      Refer to: Specifications  (303-01A Engine - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Specifications).

    • Clean any residual engine oil from the oil filler cap area.

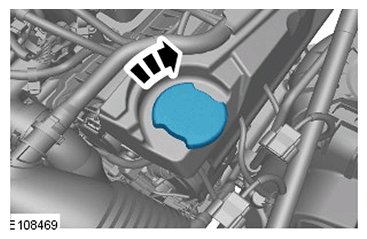

  4. G11414569
  5. CAUTION: Make sure that the vehicle has been left for 5 minutes from filling with oil.

    Follow the Steps 7-11 before starting the engine.

    • Start the engine and allow to run for 10 minutes, stop the engine.
    • Check for leaks.
  7. CAUTION:
    • Make sure that the selector lever and the gearshift mechanism are in the park (P) position.
    • Make sure that the hood is open.
    • Turn the ignition on.

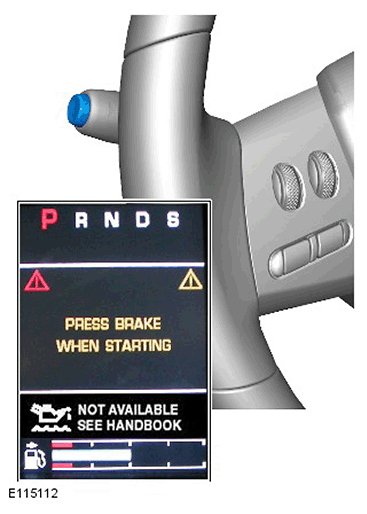

  8. G11414570
    • Scroll through the trip menu to access the engine oil level display.
  9. G11414571

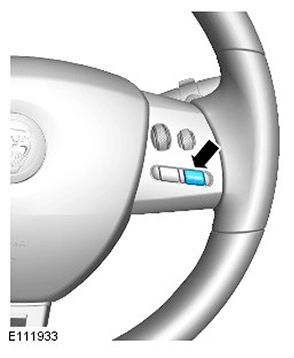

    • Press the cruise control cancel button twice within 2 seconds.

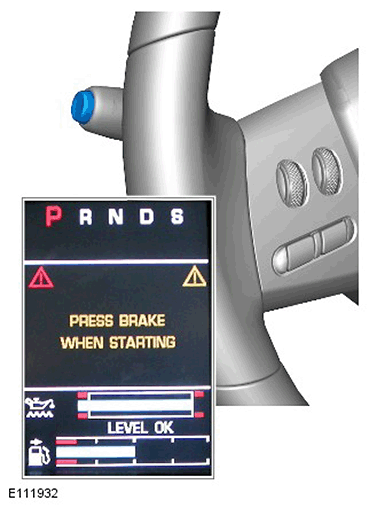

  10. G11414572
    • The message center display will revert to the normal display in the trip computer.
    • Scroll through the trip menu to access the engine oil level display.
    • Check that the oil level display shows an oil level reading.
    • Only after having started and run the engine for 10 minutes (as indicated in Step  6), switch off the engine, then stabilizing for 10 minutes, take a reading from the oil level display and, if necessary top up with engine oil.
  11. NOTE: If instructed to follow Steps 7-11 in a previous step, return to Step  6 and continue the procedure.

    Turn the ignition off.

  12. Allow 10 minutes for the engine oil level to stabilize if there has been additional oil top up.
  13. NOTE: The following steps are to update the average oil level value.
    G11414573
    • Turn the ignition on.
    • Press and hold the cruise control cancel button for more than 2 seconds.
    • The message center display will revert to the normal display in the trip computer.
  15. Turn the ignition off.
  16. Turn the ignition on.
  17. G11414574
    • Scroll through the trip menu to access the engine oil level display.
    • Make sure that the average oil level value has now been updated.
  18. Refer to: Engine Cover - V8 S/C 5.0L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation).
