General Procedures: Draining

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The spilling of hot engine oil is unavoidable during this procedure, care must be taken to prevent scalding.
CAUTION: Correct installation of the oil filler cap can be obtained by tightening the cap until hard stop.
NOTE:
  • Make sure that the vehicle is parked on level ground.
  • Clean the components general area prior to dismantling.
    • Start the engine and allow to run for 10 minutes, stop the engine.
  2. CAUTION: Allow 10 minutes from turning the engine off before starting oil extraction.

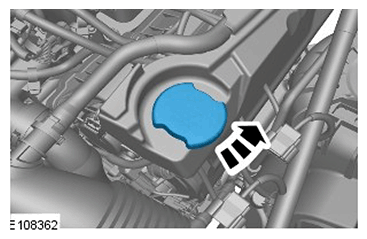

    G11414562
  3. Refer to: Engine Cover - V8 S/C 5.0L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation).

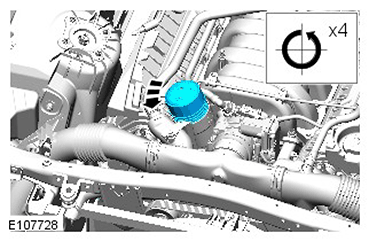

  4. G11414563
    • Loosen the element cover 4 complete turns to allow engine oil to drain from the filter cover.

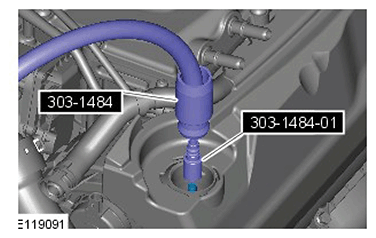

  5. G11414564
    • Using the oil vacuum pump drain the oil out through the oil extraction tube.

      Special Tool(s):  303-1484, 303-1484-01

    • Remove the oil vacuum pump.

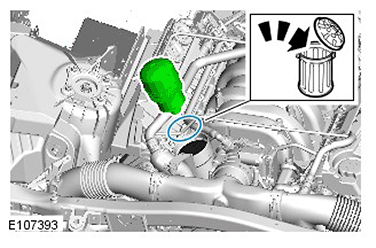

  7. G11414565
  8. NOTE: Discard the O-ring seals.

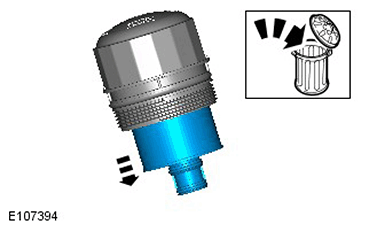

    G11414566
