General Procedures: Draining

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The spilling of hot engine oil is unavoidable during this procedure, care must be taken to prevent scalding.

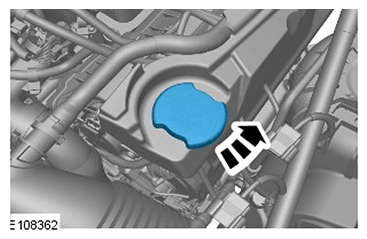

CAUTION: Correct installation of the oil filler cap can be obtained by tightening the cap until hard stop.

NOTE: Clean the components general area prior to dismantling.

CAUTION: Make sure the engine is warm.

Start the engine and allow to run for 10 minutes, stop the engine.
Refer to: Engine Cover - V8 S/C 5.0L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation).

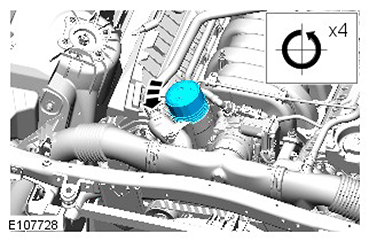

- Loosen the element cover 4 complete turns to allow engine oil to drain from the filter cover.
- Make sure that the O-ring seal is exposed.
NOTE: Allow 10 minutes for the engine oil to drain from the oil filter housing.

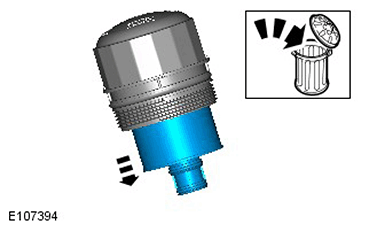

NOTE: Remove and discard the O-ring seal.

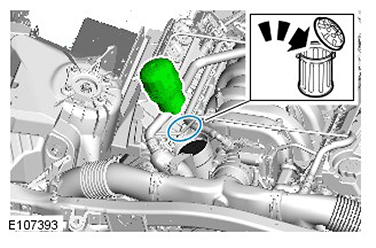

Remove and discard the oil filter element.
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: Air Deflector (501-02 Front End Body Panels, Removal and Installation).
CAUTION:
- Be prepared to collect escaping oil.
- Allow at least 10 minutes for the engine oil to drain.

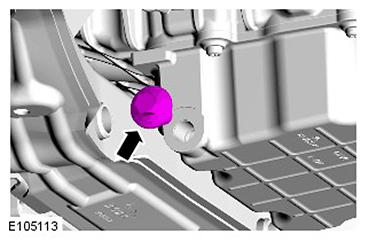

NOTE: Discard the sealing washer.
