Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: Air Deflector (501-02 Front End Body Panels, Removal and Installation).

    All vehicles

  4. CAUTION: Support the engine on a jack. The angle may need to be adjusted during this procedure.

    Support the engine with the lifting equipment.

    Right-hand drive vehicles

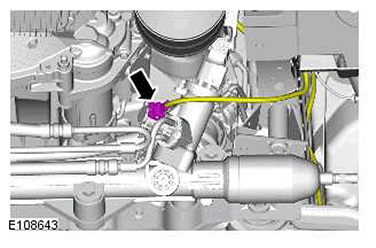

  5. G11414813
  6. NOTE: Note the fitted position.

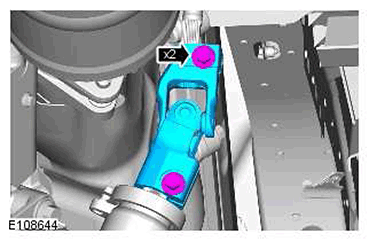

    G11414814

    Torque: 35 Nm

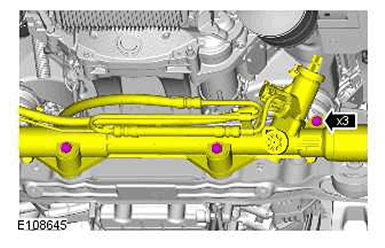

  7. G11414815

    Torque: 100 Nm

    All vehicles

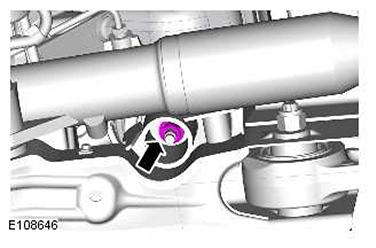

  8. G11414816

    Torque: 63 Nm

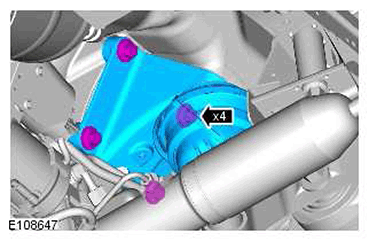

  9. G11414817

    Torque: 48 Nm

  10. NOTE: Do not disassemble further if the component is removed for access only.

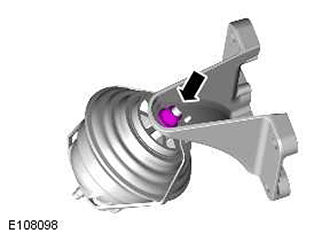

    G11414818

Torque: 48 Nm
