Removal And Installation: Removal
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
-
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
- Refer to: Air Conditioning (A/C) Compressor - V8 S/C 5.0L Petrol (412-03 Air Conditioning, Removal and Installation).
-
CAUTION: Support the engine on a jack. The angle may need to be adjusted during this procedure.
Support the engine with the lifting equipment.
Left-hand drive vehicles
-

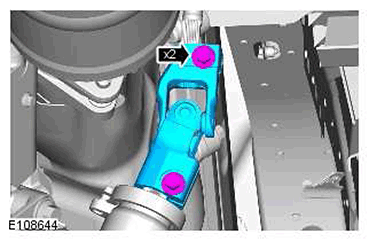

NOTE: Note the fitted position.
- Torque: 35 Nm

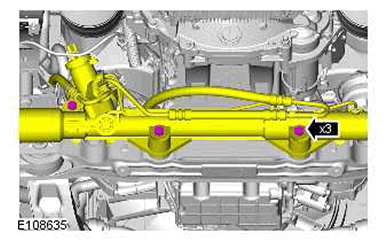

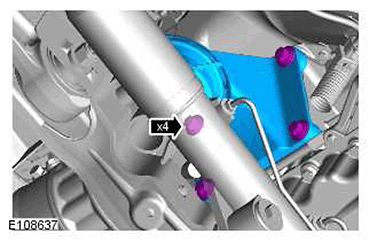

- Right-hand side shown, left-hand side similar.
- Torque: 100 Nm
- Support and release the power steering rack.
All vehicles

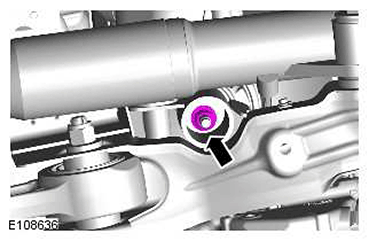

- Torque: 63 Nm
- Remove and discard the nut.

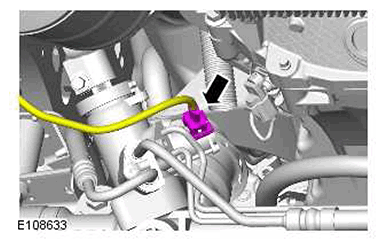

- Torque: 48 Nm
- Raise the engine.
-

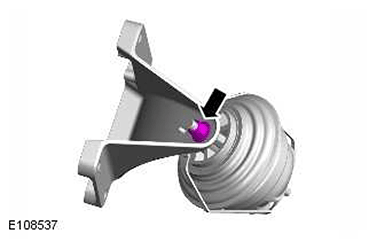

NOTE: Do not disassemble further if the component is removed for access only.
- Torque: 48 Nm
- Remove and discard the nut.
