Variable Camshaft Timing Unit Schematic - Base Timing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

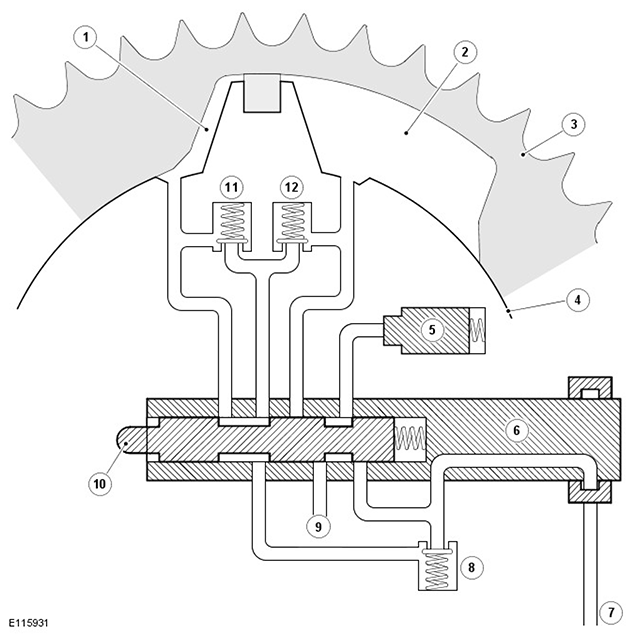

| ITEM | DESCRIPTION |
|---|---|
| 1 | Advance chamber |
| 2 | Retard chamber |
| 3 | Sprocket housing |
| 4 | Rotor assembly |
| 5 | Lock pin |
| 6 | Sleeve |
| 7 | Engine oil supply from camshaft |
| 8 | Inlet check valve |
| 9 | Lock pin drain |
| 10 | Spool valve |
| 11 | Advance check valve |
| 12 | Retard check valve |
At engine start-up, once the engine oil pressure in the camshaft is sufficient to open the inlet check valve, engine oil flows across the spool valve, through the advance and retard check valves and into the advance and retard chambers. During the start cycle, the ECM signals the VCT solenoid to move the spool valve into the sleeve and connect the lock pin to inlet oil pressure. The inlet oil pressure causes the lock pin to retract from the inner plate and unlock the rotor assembly and camshaft from the sprocket housing.
There is a constant supply of oil to the VCT to ensure the unit remains filled during operation.
