Valve Train: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

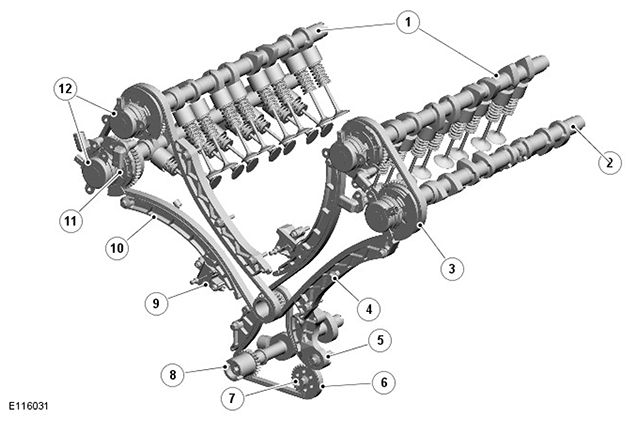

ITEM	DESCRIPTION
1	Inlet camshafts
2	Exhaust camshaft
3	Inverted tooth timing chain
4	Nylon chain guide
5	Auxiliary chain tensioner
6	Auxiliary drive chain
7	Oil pump drive
8	Auxiliary drive camshaft
9	Timing chain tensioner
10	Tensioner lever
11	VCT unit
12	VCT solenoids

The lightweight valve train provides good economy and noise levels and is chain driven from the crankshaft.

Double overhead camshafts on each cylinder head operate the valves. For each cylinder head, an inverted tooth timing chain transfers drive from the crankshaft to the VCT (variable camshaft timing) unit on the front of each camshaft. Graded tappets enable setting of inlet and exhaust valve clearances.

Each timing chain has a hydraulic tensioner operated by engine oil pressure. The chain tensioners incorporate a ratchet mechanism, which maintains tension while the engine is stopped to eliminate start-up noise. The chains are lubricated with engine oil from jets located at the front of the engine block. Nylon chain guides control chain motion on the drive side.
